ZB MESH NETWORK RELAY

Displaying 51 - 70 of 70 Products in this Category.

Display Page: 1 ( 2 )

ZR25_ZBMESH

2 Relays
5 Amp SPDT
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$93.00/ea

ZR210_ZBMESH

2 Relays
10 Amp SPDT
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$103.00/ea

ZR15_ZBMESH

1 Relays
5 Amp SPDT
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$83.00/ea

ZR110_ZBMESH

1 Relays
10 Amp SPDT
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$93.00/ea

ZR120_ZBMESH

1 Relays
20 Amp SPDT
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$93.00/ea

ZR130_ZBMESH

1 Relays
30 Amp SPST
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$103.00/ea

ZR220_ZBMESH

2 Relays
20 Amp SPDT
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$113.00/ea

ZR230_ZBMESH

2 Relays
30 Amp SPST
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$123.00/ea

ZR220HP_ZBMESH

2 Relays
20 Amp SPDT
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Economy Series
Learn More

$58.00/ea

ZADSSR4xPROXR_ZBMESH

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
8 A/D Inputs
XR Expansion Port
Learn More

$159.00/ea

ZADSSR8xPROXR_ZBMESH

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
8 A/D Inputs
XR Expansion Port
Learn More

$199.00/ea

ZUXPSSR4xPROXR_ZBMESH

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$159.00/ea

ZUXPSSR8xPROXR_ZBMESH

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$199.00/ea

ZAD1216PROXR_ZBMESH

16 Channels
ZigBee Communication
ProXR Series
Range: 300 ft. to 1 mi.
Learn More

$159.00/ea

ZAD1232PROXR_ZBMESH

32 Channels
ZigBee Communication
ProXR Series
Range: 300 ft. to 1 mi.
Learn More

$268.00/ea

ZAD1248PROXR_ZBMESH

48 Channels
ZigBee Communication
ProXR Series
Range: 300 ft. to 1 mi.
Learn More

$377.00/ea

ZADSSR4xPROXR_ZBMESH_MIX

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
Learn More

$159.00/ea

ZADSSR8xPROXR_ZBMESH_MIX

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
Learn More

$199.00/ea

ZUXPSSR4xPROXR_ZBMESH_MIX

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$159.00/ea

ZUXPSSR8xPROXR_ZBMESH_MIX

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$199.00/ea

Display Page: 1 ( 2 )

ZB Mesh Contact Closure Input Scanner Detector
ZB Mesh Network Devices

ZB Mesh Contact Closure Devices
Switch Closure Input is a vital part of just about any control system. Our Contact Closure Input Scanner Detectors allow you to read 16, 32, or 48 switches per board. All our ProXR boards are built with expansion in mind. If you need to monitor more switches or expand as your needs grow simply plug in a Contact Closure Expansion Module as needed using the onboard XR Expansion Port. ZB Mesh Contact Closure

Ideal for the Following Applications:

Light Switches
Reading Motion Detectors
Glass Breakage Detectors
Window/Door Open Detectors
Any Device with Contact Closure Output

Here's how it works
To use this device, simply connect the Contact Closure Input to the switch or detector you wish to monitor. Next, you will send a couple of bytes of data to the board requesting input detection. The contact closure board will report back a value from 0-255, indicating the current status of the inputs on a selected bank in binary form.

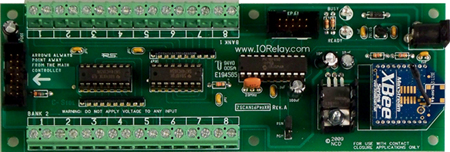

ZB Mesh Contact Closure
Code	Name	Image	Price
ZSCAN16PROXR_ZBMESH	ZB Wireless Mesh Networking 16-Channel Contact Closure Input Scanner Detector		$104.00
ZSCAN32PROXR_ZBMESH	ZB Wireless Mesh Networking 32-Channel Contact Closure Input Scanner Detector		$144.00
ZSCAN48PROXR_ZBMESH	ZB Wireless Mesh Networking 48-Channel Contact Closure Input Scanner Detector		$187.00
