IEEE 802.15.4 Relay Board with DPDT Relays Installed
Double Pole Double Throw Relay
A DPDT Relay, Double Pole Double Throw Relay, has a single coil with two arms that move at the same time. There are two completely separate SPDT switch mechanisms inside a DPDT relay. A DPDT relay board is most commonly used for signal switching applications, but can be found in high power switching applications as well.
Low Cost Wireless
IEEE 802.11.4 Relay Controllers offer Standardized Low-Cost, Wireless 2-Way Communications, Offering Excellent Communication Range and Reliability. 802.15.4 Relay Controllers allow you to speak to a NCD Device using standard Serial Communication as though the device were directly connected to the COM port of your computer. Serial commands are automatically forwarded to 802.15.4 devices within range.
Simply write your software to talk to the serial port and you will be talking to a 802.15.4 Wireless Relay in no time!
Supports 2-way communications at any baud rate up to 115.2K
8 Data Bits, 1 Stop Bit, No Parity
ProXR versions expandable to control up to 256 Relays using the XR Expansion Port
Control one relay or all 256 at once with manual or automatic refreshing command set
1, 3, and 5 amp versions available
No special software needed
All IEEE 802.15.4 Controllers are SignalSwitch Compatible
Using our example software and source code there is little to no programming required. Using our USB Modem the relay acts like it's connected directly to your computer!
The ease of setup of the 802.15.4 Relays, which utilize a wireless protocol is demonstrated in the above video. These Wireless Relays are ideal for reliable, low cost wireless relay applications. Not only is it easy to power and connect the wireless interface but thanks to our example software and source code there is little to no programming required to allow your computer to begin communicating with the relay. Simply connect a IEEE 802.15.4 Modem into your USB port and it will forward all commands to the Wireless Relay. (Commands can also be sent to multiple Relays).

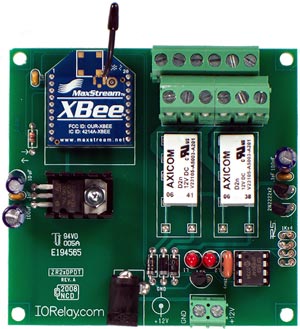

IEEE 802.15.4 DPDT Relay
Our 802.15.4 DPDT boards offer your choice of 1, 3 or 5 amp relays and are available in 2, 16, 24 and 32 channel versions with your choice of eight channel 8/10-Bit
Analog to Digital Conversion or
UXP Expansion Port on selected models, look for AD or UXP in the part number. All are of course
SignalSwitch compatible. The 16, 24 and 32 channel 802.15.4 DPDT Relays feature the
ProXR Command Set and an
XR Expansion Port, simply look for PROXR in the part number. The XR Expansion Port will allow you to expand any ProXR model board to 256 relays using our
XR Expansion Modules. The UXP port will allow you to add Analog to Digital Expansion Modules, Contact Closure Input Modules or Digital Potentiometers to any UXP board. See below for more on the A/D Conversion, UXP and ProXR features.

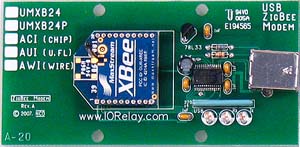

IEEE 802.15.4 Modem
A
802.15.4 Modem connects to the USB Port of your PC and mounts as a virtual COM port (an IEEE 802.15.4 Modem video can be found at the bottom of this page). Simply write your software to talk to the serial port and you will be talking to wireless devices in no time!!! For more detailed information and to order, please click on the links below.
Articles
New to IEEE 802.15.4 Wireless Relay? Click the following links for helpful wireless articles to get you started.
UXP is a new standardized data port, specifically for the purpose of speaking to various expansion modules. If the controller you are considering is equipped with a UXP port, you can take advantage of extended commands to speak to our growing line of I/O expansion modules. UXP in the part number allows you to:
By downloading the NCD Component Library you will receive over 40 samples from A/D Conversion to Duration and Pulse Timing and best of all it's FREE!! We want the user to be able to experiment with all the different samples available so as of right now the samples cannot be downloaded individually.
We've "Started" the Programming for You
With the NCD Component Library we've "started" the programming for you. We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs. Start by downloading the NCDComponentSetup.zip file from the NCD Component page.
This video will introduce you to the world of ZigBee Communications and show you how we integrate ZigBee into our boards. Also read our Article on ZigBee Communications.
This video will show you how to set up both the hardware and software portions of your ZigBee Relay Controller. Also read our Article on ZigBee Communications.
This movie will show you how to Troubleshoot your ZigBee Relay Controllers using XCTU Software.
Also read our Article on ZigBee Networking.
This video is a basic introduction to the world of Computer Controlled Switching and Relays in general. Also read our "Introduction to Computer Control" Article.
Watch to find out the advantages of wireless communications and the differences between wireless communications. Also read our Articles on Communication Protocols.
This video will show you what Induction is and how to use Capacitors to Suppress it. Also read our Article on Induction Suppression.
Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.
This movie will show you how to find the Com Port assigned to your Relay Controller. The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.
This movie will explain the different expansion options that can be used with our controllers.
802.15.4 DPDT Relay Controllers
Displaying 1 - 18 of 18 Products in this Category.
The ProXR Series Controller allow computers to read contact closure inputs, analog to digital converters and control up to 256 Relays using a single computer interface. ProXR series controllers focus on expansion for industrial control applications.
The ProXR Lite product line allows computers to read up to 8 analog inputs and control up to 8 relays.
Non-Expandable, the ProXR Lite Product Line focuses on interchangeable Computer Interface Modules and Low Cost
Focusing on Cost Reduction and High Volume Manufacturing, the Low Cost Series are No-Frills Relay Controllers that offer Basic Computer Control at Low Communications Speed.
Activate Relays when Sensors Reach Limits. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Reactor, then Let the Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Activate Relays with a Remote Control Key Fob. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Key Fob Reactor, then Let the Key Fob Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Time Schedule Activated Relays with Computer Interface. Use a Computer to Setup the Time Schedule.
Taralist Series Controllers do not require a computer after initial configuration.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
The MirC Product Line Consist of TWO Controllers, Offering Contact Closure Inputs in One Location that Control Relays in a Remote Location.
The Transmitter Shows the Status of the Receiver. Smart Features optionally Turn Off Remote Relay if Communications is Lost. Sold in Pairs ONLY.
The MirX Product Line Consist of TWO Controllers, Offering Contact Closures and Relays on Each Controller. The Contact Closure Inputs at Location A control Relays at Location B. The Contact Closure Inputs at Location B control Relays at Location A. Each Controller Remotely Controls the Other. Smart Features optionally Turn Off Relays if Communications is Lost between the Two Controllers. Sold in Pairs ONLY.
