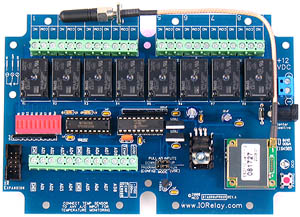

Our customers have been asking for a Bluetooth relay board and Bluetooth control for several months now. We have been researching Bluetooth options and have finally settled on integrating SENA Bluetooth modules into our product line. They offer excellent communication range, speed, and reliability with minimal integration time. Simply pair our Bluetooth controller with your laptop, PDA, desktop, or other system, and you will be talking to the device as though it were directly connected to the RS-232 port of your computer (supports 115.2K Baud operation). Current versions offer Relay Control +
8-Channels 8/10-Bit A/D, or Relay Control +
UXP Expansion Port. All versions include an
XR Expansion Port for adding additional relay banks. Using our
Standardized ProXR Command Set, it's easy to upgrade to a Bluetooth interface if you are using our other interface options.
This Device Acts like its Directly Connected to the Serial Port of your PC, Laptop, or PDA!!! Wireless Data Collection and Control Could NOT be Easier!!! Bluetooth Powered Relay Controllers Offer Wireless Communications with No Special Software and
NO DRIVERS REQUIRED!!!
Summary of Bluetooth Communications
A Bluetooth Wireless Interface mounts as a Virtual COM Port on your PC, laptop or PDA
Pair with Your Computer, Open the COM Port and Start Sending Commands
Supports 2-way communications at any baud rate up to 115.2K
Fastest wireless technology we offer
ProXR versions expandable to control up to 256 Relays using the XR Expansion Port
Control one relay or all 256 at once with manual or automatic refreshing command set
Our Bluetooth Relays feature a wide range of controllers to fit just about any application!
DPDT and SPDT controllers are available with your choice of eight channel 8/10-Bit
Analog to Digital Conversion or
UXP Expansion Port on selected models and all are of course
SignalSwitch compatible. Select Bluetooth Relays feature the
ProXR Command Set and an
XR Expansion Port. Built from the ground up with expansion in mind, simply chain the
XR Expansion Modules to the XR Expansion port, one after another, to meet your computer controlled switching requirements up to 256 relays.
For more detailed information and to order, please click on the links below.
Control Relays with a Cell Phone!
ProMOTE is an exclusive FREE program that allows you to control any NCD Bluetooth ProXR controller with your cell phone, PDA, Laptop, or Desktop computer! That's right, use you cell phone as a remote!! Fully programmable the ProMOTE software allows you to configure your own buttons for instant computer control WITHOUT software development! The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and your ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier! For more information visit our
ProMOTE Page.
Articles
New to Bluetooth Relay? Click the following links for helpful wireless articles to get you started.
UXP is a new standardized data port, specifically for the purpose of speaking to various expansion modules. If the controller you are considering is equipped with a UXP port, you can take advantage of extended commands to speak to our growing line of I/O expansion modules. UXP in the part number allows you to:
By downloading the NCD Component Library you will receive over 40 samples from A/D Conversion to Duration and Pulse Timing and best of all it's FREE!! We want the user to be able to experiment with all the different samples available so as of right now the samples cannot be downloaded individually.
We've "Started" the Programming for You
With the NCD Component Library we've "started" the programming for you. We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs. Start by downloading the NCDComponentSetup.zip file from the NCD Component page.
This video is a basic introduction to the world of Computer Controlled Switching and Relays in general. Also read our "Introduction to Computer Control" Article.
Watch to find out the advantages of wireless communications and the differences between wireless communications. Also read our Articles on Communication Protocols.
This video will show you what Induction is and how to use Capacitors to Suppress it. Also read our Article on Induction Suppression.
Learn about the mechanics, applications, and tricks to Analog to Digital Conversion. Also read our Article on Analog to Digital Conversion.
This movie will show you how to find the Com Port assigned to your Relay Controller. The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.
The ProXR Series Controller allow computers to read contact closure inputs, analog to digital converters and control up to 256 Relays using a single computer interface. ProXR series controllers focus on expansion for industrial control applications.
The ProXR Lite product line allows computers to read up to 8 analog inputs and control up to 8 relays.
Non-Expandable, the ProXR Lite Product Line focuses on interchangeable Computer Interface Modules and Low Cost
Focusing on Cost Reduction and High Volume Manufacturing, the Low Cost Series are No-Frills Relay Controllers that offer Basic Computer Control at Low Communications Speed.
Activate Relays when Sensors Reach Limits. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Reactor, then Let the Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Activate Relays with a Remote Control Key Fob. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Key Fob Reactor, then Let the Key Fob Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Time Schedule Activated Relays with Computer Interface. Use a Computer to Setup the Time Schedule.
Taralist Series Controllers do not require a computer after initial configuration.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
The MirC Product Line Consist of TWO Controllers, Offering Contact Closure Inputs in One Location that Control Relays in a Remote Location.
The Transmitter Shows the Status of the Receiver. Smart Features optionally Turn Off Remote Relay if Communications is Lost. Sold in Pairs ONLY.
The MirX Product Line Consist of TWO Controllers, Offering Contact Closures and Relays on Each Controller. The Contact Closure Inputs at Location A control Relays at Location B. The Contact Closure Inputs at Location B control Relays at Location A. Each Controller Remotely Controls the Other. Smart Features optionally Turn Off Relays if Communications is Lost between the Two Controllers. Sold in Pairs ONLY.
