4 Channel Bluetooth Relay
4 Channel Bluetooth Wireless Relay Controller
|
4 Channel Bluetooth Relay Board
We have been researching Bluetooth options and have settled on integrating SENA Bluetooth modules into our product line. They offer excellent communication range, speed, and reliability with minimal integration time. Simply pair our Bluetooth controller with your laptop, PDA, desktop, or other system, and you will be talking to the device as though it were directly connected to the RS-232 port of your computer (supports 115.2K Baud operation). Current versions offer Relay Control +
8-Channels 8/10-Bit A/D, or Relay Control +
UXP Expansion Port. All versions include an
XR Expansion Port for adding additional relay banks. Using our
Standardized ProXR Command Set, it's easy to upgrade to a Bluetooth interface if you are using our other interface options.
|
Simply connect the antenna and power supply and this Expandable
Bluetooth Solid State Relay is receiving commands! These Relays
are ideal for High Speed, High Induction Relay Control.
|
|
|

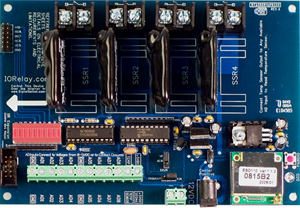

BTADSSR4xPROXR Bluetooth Solid State Relay |
4 Channel Bluetooth Relay
Our 4 Channel Bluetooth Relays feature
SPDT and Solid State relays. The Solid State Relays are available with your choice of eight channel 8/10-Bit
Analog to Digital Conversion or
UXP Expansion Port on models, look for AD or UXP in the part number. All are of course
SignalSwitch compatible. All Four Channel Bluetooth Relays feature the
ProXR Command Set and an
XR Expansion Port. Built from the ground up with expansion in mind, simply chain the
XR Expansion Modules to the XR Expansion port, one after another, to meet your computer controlled switching requirements to add up to 256 relays.
For more detailed information, video, manuals and to order, please click on the links below.
|
A/D Conversion
Bluetooth Analog to Digital Converter |
UXP Expansion
UXP Expansion Port
|
XR Expansion
ProXR versions |
 |
 |
|
|
Onboard analog to digital conversion is available on selected models of these controllers! This will allow you to:
- Read light and temperature levels
- Easily activate relays when A/D limits are reached
- Detect audio levels in a room when connected to a microphone
- Read switches, potentiometers, and analog joysticks
- applications are limitless, and surprisingly easy to integrate
- Available on select boards
|
UXP is a new standardized data port, specifically for the purpose of speaking to various expansion modules. If the controller you are considering is equipped with a UXP port, you can take advantage of extended commands to speak to our growing line of I/O expansion modules. UXP in the part number allows you to:
- Add Contact Closure Inputs
- Add Analog to Digital Inputs
- Add Voltage Detectors
- Digital Potentiometer Outputs
- Available on select boards
|
Models with the ProXR suffix will feature the ProXR commend set. The ProXR series will allow you to:
- Send simple commands to activate relays
- Upgrade without having to re-write your software
- Activate up to 16 relay timers
- Control up to 256 total relays using the XR expansion port
- Full backward/forward compatibility w/the ProXR series command set
- Available on all boards
|
|
NCD Component Library Download
Download NCD Component Library
By downloading the NCD Component Library you will receive over 40 samples from A/D Conversion to Duration and Pulse Timing and best of all it's FREE!! We want the user to be able to experiment with all the different samples available so as of right now the samples cannot be downloaded individually.
We've "Started" the Programming for You
With the NCD Component Library we've "started" the programming for you. We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs. Start by downloading the NCDComponentSetup.zip file from the NCD Component page. |
 Download NCD Component Library
 Over 40 samples included with this download! To view screen shots of each example visit our NCD Component Library Page. |
|
This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.
Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.
This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.
This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.
|
|
