1-Channel ZB ZigBee Relay

XB Mesh Network ExampleZB ZigBee Wireless Networking Relay

ZB ZigBee is simply the hottest wireless technology of our time. Period. It's fast, it's very easy to use, highly reliable, and self healing. Three components are required for the ZB ZigBee Network, the Coordinator (C), the Router (R) and the Endpoint (E).  Your computer can speak to a ZB ZigBee Network using a Coordinator. Think of the Coordinator as the interface to a ZB ZigBee Network. NCD Coordinators are equipped with a USB Interface. USB Coordinators mount as a Serial Port on your computer, and you will develop software that sends Serial commands at 115.2K Baud. The primary job of a router is to bridge the wireless gap between your computer (the Coordinator) and the device (Endpoint). If the Coordinator cannot speak to the Endpoint device because it is out of range, a Router can be used to bridge the two devices together. Endpoints are simply devices. With regard to NCD products, Endpoints can be relay controllers, data collection devices, PWM devices, and much more (and more coming).

Quick Summary of ZB ZigBee Wireless Networking

  • A Coordinator Connects to your Computer 1Channel ZB Mesh Relay
  • A Coordinator is used to communicate with a ZB ZigBee Wireless network
  • A Coordinator can talk to up to 8 Endpoints or Routers in any combination
  • A device is an Endpoint
  • If a Coordinator cannot talk to an Endpoint because it is out of range, a Router can be used to Bridge Data between the Coordinator and the Endpoint
  • A Router can also be an Endpoint device, but it's slower

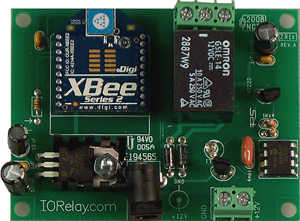

1 Channel ZB ZigBee Relay

Our 1 Channel ZB ZigBee Relays feature your choice of 5, 10 and 20 amp SPDT relays or a 30 amp SPST relay.
  NEW TO ZB ZIGBEE NETWORKING? GET STARTED HERE
Click the above link for an exclusive article on ZB ZigBee Wireless Networking

1 Channel ZB MESH Controller

ZR15_ZBMESH
1-Channel 5-Amp SPDT ZB ZigBee Mesh Networking Relay Controller
More >>
$83.00
Order this Device
ZR110_ZBMESH
1-Channel 10-Amp SPDT ZB ZigBee Mesh Networking Relay Controller
More >>
$93.00
Order this Device
ZR120_ZBMESH
1-Channel 20-Amp SPDT ZB ZigBee Mesh Networking Relay Controller
More >>
$93.00
Order this Device
ZR130_ZBMESH
1-Channel 30-Amp SPST ZB ZigBee Mesh Networking Relay Controller
More >>
$103.00
Order this Device
