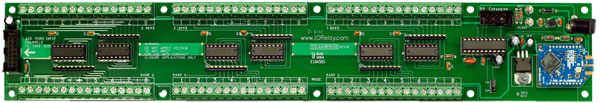

ZSCAN48PROXR_XSC Contact Closure Input Detector
Long Range Wireless 48-Channel Contact Closure Input Scanner Detector
Resources
Product Resources:
 |
Download Product Manual |
 |
Download Latest X-CTU XSC Configuration Utility (Digi X-CTU Software lets you set advanced features of the XSC Module, not required for most applications) |
 |
Download Example Software and Source Code |
Software Development Tools:
|
Download the NCD Component Library |
The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Features
- Wireless USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating Systems
- Plug In, Open the COM Port and Start Sending Commands
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Add Relays to this Controller is your Needs Ever Grow
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- CPU Status LEDs Show Command Processing Activity
This Product:
Related Products:
ZSCAN16PROXR_XSC
 |
Long Range Wireless 16-Channel Contact Closure Input Scanner Detector |
| Stock#: ZSCAN16PROXR_XSC | |
| 1-9 | $184.00 |
ZSCAN32PROXR_XSC
 |
Long Range Wireless 32-Channel Contact Closure Input Scanner Detector |
| Stock#: ZSCAN32PROXR_XSC | |
| 1-9 | $224.00 |
www.controlanything.com
Since October, 1995
Contact Closure Inputs now with ProXR
Our Scan Series Controllers monitor Contact Closure Inputs, via an enabled Computer. With minimal programming, Data Collection and Control from a Single Controller allows any computer to talk to our devices as though they were directly connected to a serial port.
This Board is capable of controlling up to 256 Relays through the XR Expansion Port.
XSC Communications
It works like this. Plug our XSC modem of your choice into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all XSC compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).
Long Range Antenna
An outside antenna will need to be installed in order to reach the 15 mile limit of these devices. When you choose this optional antenna we will include everything you will need to install this except for the pole. Included will be the Cushcraft PC9013 antenna, 20 feet of cable (longer cables are not recommended) and the connector to connect the board to the cable. Purchase a pole to mount the antenna from your local home improvement store and install the antenna. Connect the board to the antenna via the provided cable and start sending commands.
What is ProXR?
ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Bluetooth, Fiber Optic, Wireless ZigBee/Mesh, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest. Detailed information about the ProXR command set can be found in the ProXR Manual.
Building a solid foundation for future hardware is what ProXR is all about. We have worked hard to modularize the ProXR firmware in such a way that it can support growth of features without sacrificing backward compatibility. Most controllers produced from 2007 onward will support our ProXR command set. These controllers will also include a XR Expansion Port, allowing you to add relays to any controller you choose. So if your needs for computer control increase, our controllers will be ready for your growth.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
| Antenna Options | |||
| The XSC900SR Short Range Antenna (distance of 1/2 mile) is included with the price of the controller. If you ate looking for longer distances choose the XSC900LR Long Range Antenna (up to 15 miles) option at checkout. | |||
 |
 |
||
|
XSC900SR $49 Short Range Included with Controller |
 |
XSC900LR $375 Long Range Includes Pigtail, Cable, & Antenna |
|
| Modem Options | |||
| The XSC Series modems connects to the USB Port of your PC and mounts as a virtual COM port. Simply write your software to talk to the port and you will be talking to XSC wireless devices in no time. You will be able to purchase a modem with your controller during checkout. | |||
 |
|
||
|
UXSCMSR $155 Short Range Includes Modem, Pigtail & Antenna |
|
UXSCMLR $484 Long Range Includes Modem, Pigtail, Cable, & ExternalAntenna |
|
Long Range Wireless 48-Channel Contact Closure Input Scanner Detector | |
|
Quantity in Basket:
None
Code: ZSCAN48PROXR_XSC Price: $267.00 Shipping Weight: 1.00 pounds | |
