ZBFOI_60MW_INT IEEE 802.15.4 to Fiber Optic Interface

60 mW IEEE 802.15.4 Interface with Integrated Antenna ( up to 1 Mile Range) for Fiber Optic Relays

Control this Device Over the Internet

Signal Switch Compatible

IEEE 802.15.4 to Fiber Optic
Interface Board
$104/ea

Provides Communication capabilities for any of our Fiber Optic Relays.

NEW TO THE FIBER OPTICS? GET STARTED HERE
Click the above link for an exclusive article on Fiber Optic communications

*RESOURCES:*
	Download Product Manual
	View Mechanical Drawing

Release Date July 14, 2008.

Use a IEEE 802.15.4 Modem to Talk to ANY NCD Fiber Optic Controller

Mounts as a COM Port, Allowing Easy Programming of NCD Fiber Optic Devices

Write your Program to Speak to a COM Port, Let this Device Handle All Communications to Fiber Optic Controllers

IEEE 802.15.4 Interface Supports Virtual COM Baud Rates up to 115.2K Baud

Connect the board via a IEEE 802.15.4 Modem, Open the COM Port and Start Sending Commands

Optically Isolated Interface offers Superior Protection for your Computer

Use Other Fiber Optic Interface Options as your Needs Evolve

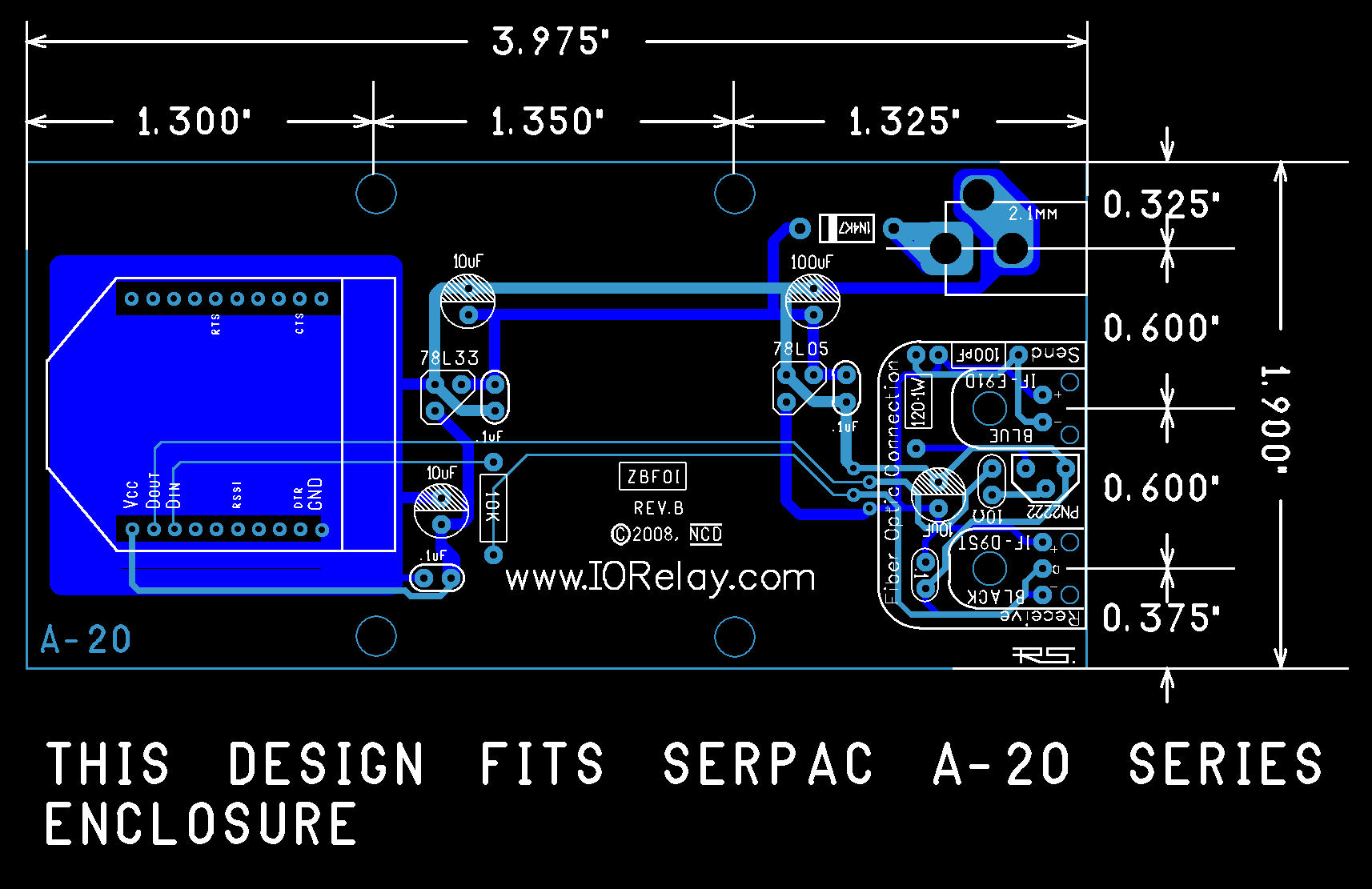

MECHANICAL DRAWING

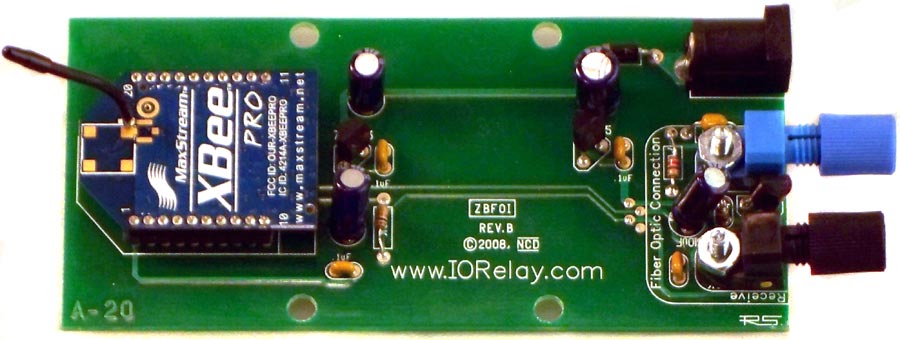

	IEEE 802.15.4 to Fiber Optic Interface Board
*Stock #: ZBFOI_60MW_INT*
1-9	$104/ea
(click above picture to enlarge)

National Control Devices, LLC

www.controlanything.com

Since October, 1995

IEEE 802.15.4 Interface for Fiber Optic Relays

The IEEE 802.15.4 Fiber Optic Interface controllers makes it very easy to connect any NCD Fiber Optic Device to your computer. This IEEE 802.15.4 Interface allows you to easily communicate to NCD Fiber Optic Devices using the a IEEE 802.15.4 Modem connect to your computer.

This device mounts as a COM port, and handles all fiber optic communications as though it were a serial port connected to your PC. This configuration makes it very easy for any programmer to write software to speak to NCD Fiber Optic Devices.

Simply develop your application to speak to a standard serial device, let our Fiber Optic device handle the rest.

Fiber Optics offer superior noise immunity and protection of your computer for high power control applications. Fiber Optic interface controllers offer the Safest, fastest, and most reliable communication technology, allowing you to easily upgrade to other interface options as your needs change.

Superior lightning protection, noise immunity, and high induction tolerance make fiber optics the most viable choice for our most exclusive customers.

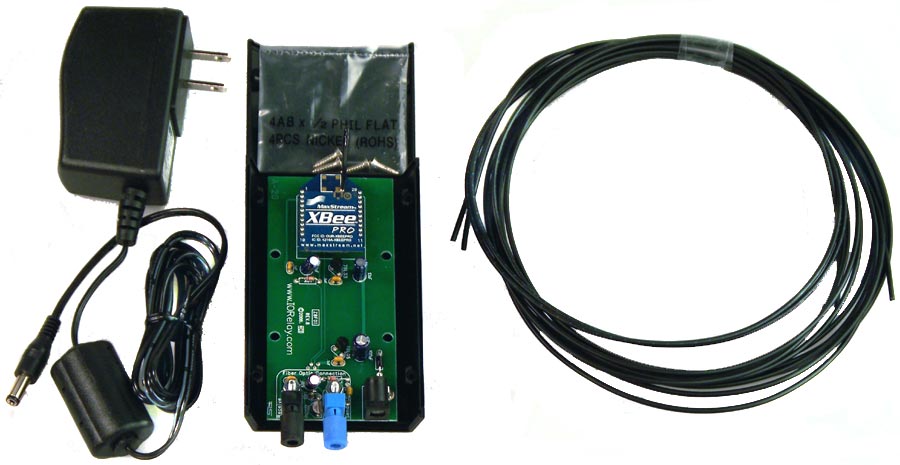

All available Accessories for this Fiber Optic Interface

Includes 2 10-Feet strands of Fiber Optic Cable, Power Cord, and IEEE 802.15.4 to Fiber Optic Converter.

Fiber Optic Interface Options

USBFOI

USB to Fiber Optic Interface

More >>

$85.00

ZBFOI_1MW_INT

1 mW 802.15.4 Interface w/ Integrated Antenna for 802.15.4 Wireless to Fiber Optic Signal Conversion

More >>

$85.00

ZBFOI_60MW_INT

60 mW 802.15.4 Interface w/ Integrated Antenna for 802.15.4 Wireless to FiberOptic Signal Conversion

More >>

$104.00

ZBFOI_60MW_EXT

60 mW 802.15.4 Interface w/ External Antenna for 802.15.4 Wireless to Fiber Optic Signal Conversio

More >>

$138.00

NEFOI

Ethernet to Fiber Optic Interface

More >>

$154.00

NWFOI

WiFi 802.11b to Fiber Optic Interface

More >>

$224.00

ZBFOI_1MW_EXT

1 mW 802.15.4 Interface with External Antenna for 802.15.4 Wireless to Fiber Optic Signal Conversion

More >>

$119.00
