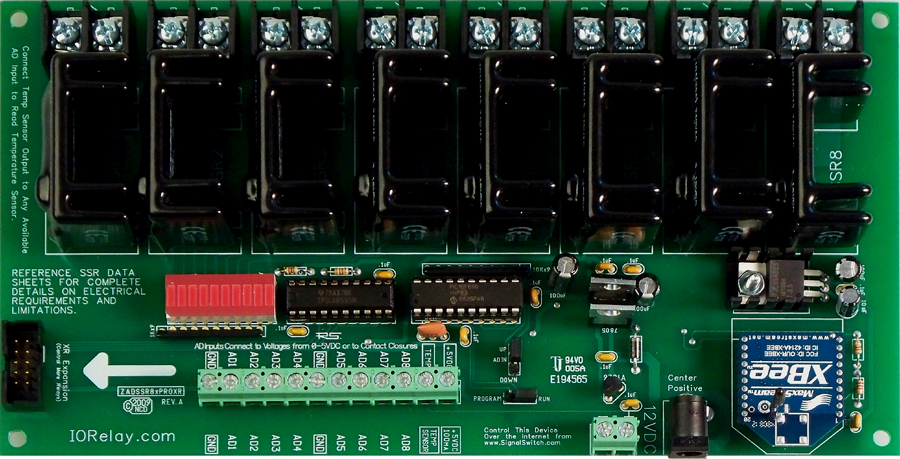

ZADSSR8xPROXR Solid State Relay

802.15.4 Wireless 8-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D

Solid State Relay Controller
Unmatched Solid State Reliability and Induction Tolerance!  Wireless Data Collection and Control with Future Expandability in Mind.  This ProXR Series IEEE 802.15.4 Controller is Feature Rich and Ready to Grow with your Needs!
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

802.15.4 Wireless 8-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D

$199.00/ea


Resources

Product Resources:

ZigBee NEW TO IEEE 802.15.4? GET STARTED HERE
Click the above link for an exclusive article on ZigBee communications
Download USB Drivers Download Latest USB Virtual COM Port Drivers (Used by the IEEE 802.15.4 Modem)
Configuration Utility Download Latest X-CTU ZigBee Configuration Utility (Digi X-CTU Software lets you set advanced features of the IEEE 802.15.4 Module, not required for most applications)
Download ProXR Manual to learn about Relay Control Command Set
Download Example Software and Source Code (This program talks to the IEEE 802.15.4 Modem, the IEEE 802.15.4 Modem handles all communications to the device)

Software Development Tools:

Download the
NCD Component Library		 The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.




This video will introduce you to the world of ZigBee Communications and show you how we integrate ZigBee into our boards.
Also read our Article on ZigBee Communications.



This video will show you how to set up both the hardware and software portions of your ZigBee Relay Controller.
Also read our Article on ZigBee Communications.



This movie will show you how to Troubleshoot your ZigBee Relay Controllers using XCTU Software.
Also read our Article on ZigBee Networking.



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.

Solid State Relays Are Not Suitable for Some Applications.
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)

Features

Solid State Relay
Solid State Relay Mechanical Drawing

Mechanical Drawing

This Product:

ZADSSR8xPROXR
Solid State Relay
 802.15.4 Wireless 8-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: ZADSSR8xPROXR
1-9 $199.00

Related Products:

ZADSSR8xPROXR_MIX
Solid State Relay
 802.15.4 Wireless 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: ZADSSR8xPROXR_MIX
1-9 $199.00
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
National Control Devices, LLC
www.controlanything.com
Since October, 1995

Solid State: A Practical Alternative to Mechanical Relays!

Mechanical Relays have a good home in low-cost control applications.  But for some users, only solid state switching will do.  Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance.  Many inductive control applications require a solid state relay.  Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.

Simply connect the IEEE 802.15.4 Modem to the USB Port of your computer and power up the Modem and the Relay Controller. In no time you'll be talking to the board and any attached Expansion Boards.

Wireless 802.15.4 Communications

Take all the Power of the ProXR Series Relay Controllers; add a MaxStream Wireless 802.15.4 Compliant Interface and Remote Data Collection and Control is Effortless!

It works like this.  Plug our Wireless 802.15.4 modem into the USB Port of your computer.  The modem will mount as a COM port on your PC.  Open the COM port and start sending data to the modem.  The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).

What is ProXR?

ProXR refers to a set of standardized commands used for computer control and data collection.  A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility.  This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software.  ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Bluetooth, Fiber Optic, Wireless ZigBee/Mesh, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer.  Let ProXR controllers manage the rest.  Detailed information about the ProXR command set can be found in the ProXR Manual.

Building a solid foundation for future hardware is what ProXR is all about.  We have worked hard to modularize the ProXR firmware in such a way that it can support growth of features without sacrificing backward compatibility.  Most controllers produced from 2007 onward will support our ProXR command set.  These controllers will also include a XR Expansion Port, allowing you to add relays to any controller you choose.  So if your needs for computer control increase, our controllers will be ready for your growth.

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port.  All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

A/D Conversion

Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.  Built-In Pull-Up/Down Resistors keep the inputs quiet.  Eight Different A/D Sample programs are available in the NCD Component Library.  These samples are available as a free download and are compatible with Visual Studio.   We've got sensors!  Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.

Read More About Analog to Digital Conversion


Above: Our line of Wireless 802.15.4 modems allow first time users to communicate with ANY IEEE 802.15.4 device, even if it was not manufactured by us!!! Just plug the IEEE 802.15.4 Modem into your computer and install the drivers. The IEEE 802.15.4 modem will mount as a COM port on your PC. Next, talk to the COM port as though you were communicating with a RS-232 serial device that is directly connected to your PC.

Choose a Solid State Relay for This Controller:

TYPE A

Crydom
D2W202F

SPST-NO

 2A 240VAC Normally Open SPST
Zero Crossing Turn On
Built-In Snubber Circuit
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
D2W Series Data Sheet		 $12.00/each

TYPE B

Crydom
CX240D5

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $15.00/each

TYPE C

Crydom
CX240D5R

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $16.00/each

TYPE D

Crydom
PF240D25R

SPST-NO

 25A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $28/each

TYPE E

Crydom
PF480D25

SPST-NO

 25A 480VAC Normally Open SPST
Zero Crossing Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $30/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments.  Forced Air May be Required to Achieve Maximum Load Rating.  NCD does NOT Recommend Driving any Relay at Maximum Load.  It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings.  NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads.  Solid State Relays CANNOT be used for Switching DC loads.  Solid State Relays May ONLY be used in AC Switching Applications.  Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met.  External Snubber Circuitry May be Required for Certain Applications.  If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit.  This May Indicate Minimum Load Requirements Have Not Been Met.  Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase.  Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.

802.15.4 Wireless 8-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D


  Quantity in Basket: None
Code: ZADSSR8xPROXR
Price: $199.00
Shipping Weight: 1.00 pounds

Please Choose Eight Solid State Relays for this Controller:
RoHS (Lead Free) Options:
Non-RoHS Compliant
RoHS Compliant (+$10)
Do you need a +12VDC Power Supply?:
Which IEEE 802.15.4 Wireless Module should be Installed on this Device?:
Please Choose a ZigBee Modem:
  NOTICE: This device uses the IEEE 802.15.4 Wireless Point to Multi-Point communications protocol, and should not be confused with ZB ZigBee Mesh Networking devices. IEEE 802.15.4 is typically faster than ZigBee mesh devices, and slightly easier to work with. NCD also offer ZB ZigBee controllers for customers seeking ZigBee compliant mesh networking devices. ZB ZigBee and 802.15.4 devices do NOT work with each other.
