USB ProXR Relay Control with Analog to Digital Conversion
USB Relay Controller 4-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D
Product Code: ZADR45PROXR_USB

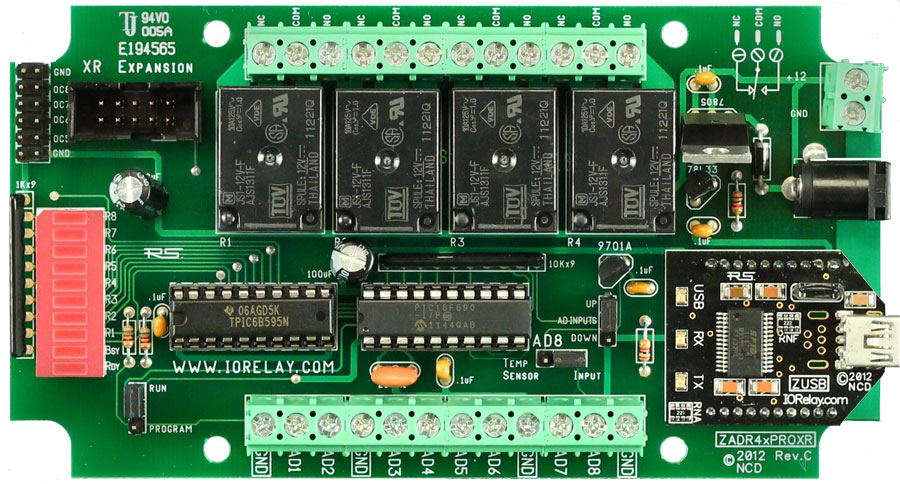

The ZADR45PROXR_USB has the same board dimensions as the ZADR45PROXR model shown in the video. The wireless 802.15.4 module is simply replaced with a USB module making this a USB board.
ProXR Relay with A/D at a Glance
- Analog to Digital Conversion allows you to read voltage levels from 0-5 volts
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your RS232 Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- 2400 to 115.2K Baud RS-232 Serial Connection for High Speed Switching
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing ProXR Command Set
- 8-Channels of 8-Bit or 10-Bit A/D
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
Related Products:
ZADR410PROXR_USB
 |
USB Relay Controller 4-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D |
| Stock#: ZADR410PROXR_USB | $169.00 |
Enclosure Available
SR151B
 |
The SR151B is an undrilled, non-waterproof enclosure and is available at checkout for this controller. |
| Stock#: ENC-SR151B | $19 |
Desktop Control
N-Button Lite
Desktop Control & Monitoring
 |
N-Button creates up to 8 desktop widgets to control relays without any programming. Order Today with This Board for Only $29 |
| Stock#: N-Button Lite | $49.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC
www.relaycontrollers.com
Since October, 1995 .
USB ProXR Enhanced with A/D:
USB Virtual COM Relay Controller with 8-Channels of
Analog to Digital Conversion and
XR Expansion Port
About USB:
Our New USB ProXR Series Relay Controllers make it easier than ever to add computer controlled switching to your most demanding computer control applications. Simply connect to your computer and this controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.
This ProXR series controller connects to the USB port of your computer and requires a 12VDC Power Supply. Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.
Read More About USB Communications
NOTICE: This Device CANNOT be used in inductive control applications. Click Here for More InformationZUSB Modules
This board is equipped with a ZUSB Module. The ZUSB communications module adds USB communications to all NCD devices equipped to accept modular wireless communication modules. The ZUSB is powered from the USB port of your computer and includes a 6' USB Cable. The ZUSB is available in three varieties:About ProXR:
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR Expansion Port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. That's just the beginning, find out more about our ProXR Command Set.
Read More About the ProXR Standard
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Read More About Analog to Digital Conversion
N-Button Lite
N-Button creates widgets or buttons to control up to eight relays without any programming. A new button will be created and placed on the desktop of your computer for each relay that you want to control. N-Button supports Serial Port/ USB and Network connection between PC and relay board. N-Button Manager makes it easy to add any type of button to the desktop and change the properties.
Analog to Digital meters can also be added to your desktop to instantly read the status of any sensor or probe you may have connected to the board. Each meter is customizable and can be changed without any programming knowledge.| Relay Button widgets turn on/off relay directly. It has never been so easy to control relays before. | |||
 |
 |
 |
 |
| Relay Status widgets show status of the relay automatically. | |||
|
 |
 |
 |
| A/D Meter widgets display the value of A/D channel automatically. | |||
 |
 |
 |
 |
| Customized Button widgets can send user-defined data to relay board. It also supports to open or run other file and application. | |||
 |
 |
 |
 |
N-Button Lite is available as a free download. Look for the Desktop Control section to the right to download.
N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, you need upgrade to the standard version.
ALL RELAYS ARE HERMETICALLY SEALED, Relay Controller Requires +12VDC Power Supply, Photos May Show Options or Accessories Not Included with Relay Controller. USB Specification Prohibits Relay Controllers from Being USB Bus Powered due to Surge Currents. NCD will NOT Design/Manufacture a Mechanical Relay Controller that is USB Bus Powered, Please Be Cautious of Any Manufacturer who Offers such a Device.
