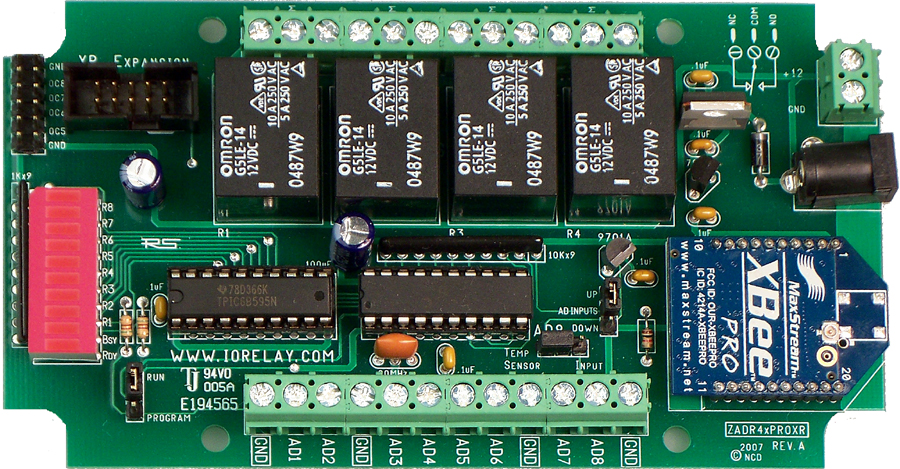

ZADR410PROXR IEEE 802.15.4 Relay
802.15.4 Wireless Relay Controller 4-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D
Resources
Product Resources:
 |
NEW TO IEEE 802.15.4? GET STARTED HERE Click the above link for an exclusive article on ZigBee communications |
 |
Download Latest USB Virtual COM Port Drivers (Used by the IEEE 802.15.4 Modem) |
 |
Download Latest X-CTU ZigBee Configuration Utility (Digi X-CTU Software lets you set advanced features of the IEEE 802.15.4 Module, not required for most applications) |
 |
Download ProXR Manual to learn about Relay Control Command Set |
 |
Download Example Software and Source Code (This program talks to the IEEE 802.15.4 Modem, the IEEE 802.15.4 Modem handles all communications to the device) |
Software Development Tools:
|
Download the NCD Component Library |
The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Video Resources
(Select a thumbnail to view the video)ZigBee Intro
Learn about the ZigBee Wireless Communications and how it stacks up to other Wireless Communication Protocols we use
ZigBee Setup
Watch as we show you how to Set Up the Hardware and the Software necessary to use your Controller
ZigBee Troubleshooting
Learn how to Troubleshoot your ZigBee Relay Controllers using the XCTU Software
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Features
- Wireless USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating Systems
- 8-Channels of 8-Bit or 10-Bit A/D
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Add Relays to this Controller is your Needs Ever Grow
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- CPU Status LEDs Show Command Processing Activity
This Product:
Related Products:
ZADR45PROXR
 |
802.15.4 Wireless Relay Controller 4-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D |
| Stock#: ZADR45PROXR | |
| 1-9 | $159.00 |
www.controlanything.com
Since October, 1995
Wireless 802.15.4 ProXR Enhanced with A/D
Take all the Power of the ProXR Series Relay Controllers
...add a Digi Wireless 802.15.4 Compliant Interface:
Remote Data Collection and Control is Effortless!
It works like this. Plug our Wireless 802.15.4 modem into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).
Above: Our line of Wireless 802.15.4 modems allow first time users to communicate with ANY IEEE 802.15.4 device, even if it was not manufactured by us!!! Just plug the IEEE 802.15.4 Modem into your computer and install the drivers. The IEEE 802.15.4 modem will mount as a COM port on your PC. Next, talk to the COM port as though you were communicating with a RS-232 serial device that is directly connected to your PC.
About ProXR
If you are already using one of our ProXR series controllers connected to the Serial Port or USB Port, then you will not have to make any software changes. This device works as though it were directly connected to a serial port on your PC, offering 100% transparent wireless serial communications.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
Read More About the ProXR Standard
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
802.15.4 Wireless Relay Controller 4-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D | |
|
Quantity in Basket:
None
Code: ZADR410PROXR Price: $169.00 Shipping Weight: 1.00 pounds | |
| 802.15.4 Wireless Relay Controller 4-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D | |
