Bluetooth Bluetooth Relay

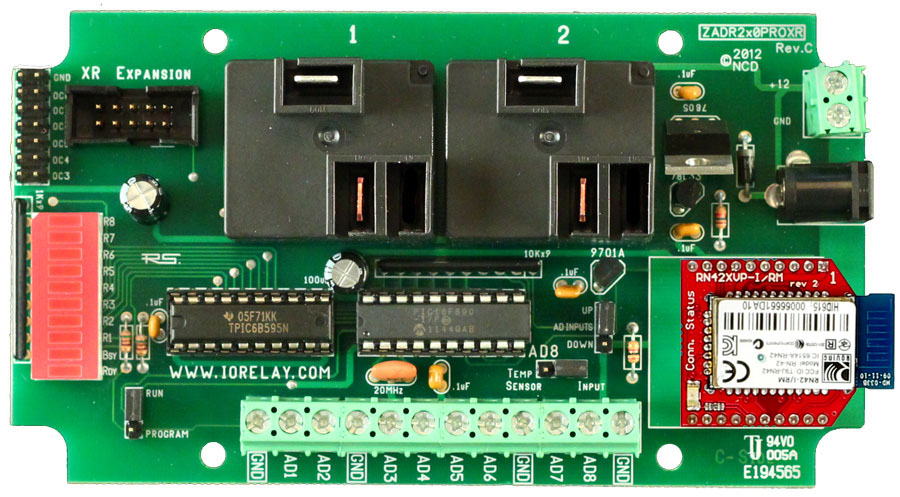

Bluetooth Relay Controller 2-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D
Product Code: ZADR230PROXR_ZBT
NO DRIVERS REQUIRED!!!
The latest version of the ProXR Series have interchangeable communications modules that can be swapped at will. Simply disconnect all power from the board and pull off one module and replace it with another.
Bluetooth ProXR Series at a Glance
- 300 Ft. Wireless Range
- Bluetooth Wireless Interface Mounts as a Virtual COM Port on your PC, Laptop, or Smart Phone for Easy Programming
- Offers 100% Emulation of ProXR Firmware
- 8-Channel of 8/10-Bit Analog to Digital Conversion
- Expandable to control up to 256 Relays
- 16 User-Programmable Timers
- Access Multiple Bluetooth Boards if Within Range
Video Resources
(Select a thumbnail to view the video)Bluetooth Introduction
Learn how computer controlled relays communicate and control
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Wireless Range Test
Test of the range of our Wireless Communication Options
802.15.4 Range Test
Test of the range of our IEE 802.15.4 Wireless Communication Options
Resources:
Here's Where to Order
Power Supply Available
PWR12 Power Supply
 |
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards |
| Stock#: PWR12 | $24/ea |
Enclosure Available
SR153B
 |
The SR153B is an undrilled, non-waterproof enclosure and is available at checkout for this controller. |
| Stock#: ENC-SR153B | $19 |
Desktop Control
N-Button
Desktop Control & Monitoring
 |
N-Button creates desktop widgets to turn relay on/off directly without any programming. Order Today with This Board for Only $99 |
| Stock#: N-Button | $169 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC
www.relaycontrollers.com
Since October, 1995 .
Wireless Bluetooth ProXR Enhanced with A/D
Take all the Power of the ProXR Series Relay Controllers
...add a SENA Bluetooth Interface:
Remote Wireless Data Collection and Control is Effortless!
About Bluetooth
So, you are looking for an easy way for your laptop or PDA to talk to a relay controller with minimal programming. No Problem, we have just the thing. Data Collection and Control from a Single Controller allows any Bluetooth equipped computer to talk to our devices as though they were directly connected to a serial port....with NO DRIVERS REQUIRED!
It works like this. Power up our controller. Boot up your laptop or PDA. Use your Bluetooth software built into your computer to Pair this device with your computer. Once Paired, this device will mount as a COM port on your PDA or Laptop. Now all you have to do is write a simple program to open the COM port of your computer to talk to this device or use our exclusive ProMOTE Software. The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!
Read More About Bluetooth Communications
About ProXR
If you are already using one of our ProXR series controllers connected to the Serial Port or USB Port, then you will not have to make any software changes. This device works as though it were directly connected to a serial port on your PC, offering 100% transparent wireless serial communications.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allows you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
Read More About the ProXR Standard
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Read More About Analog to Digital Conversion
N-Button
N-Button & N-Button Lite is software that allows you to configure buttons to control relays and read the status of those relays without programming. You can also create meters for reading variable input sensors connected to the board in real time! N-Button will allow you to create unlimited widgets and N-Button Lite will allow you to create up to 8 widgets.Custom Buttons
When you create custom buttons in N-Button & N-Button Lite you can use any of the commands that are in a ProXR Command Set that is available with this relay. You can find the full command set here. It's quite extensive and you can configure the buttons to activated these commands. These buttons will be on your desktop of your computer and when you click on a button it will send the command to the board provided the board is connected to the computer. You can also change the shape, color and text of each button so you will know exactly what each button controls.
 |
 |
 |
 |
Relay Button widgets turn on/off relays directly. It has never been easier to control relays, no programming skills required. Create a button that turns a relay on and another one to turn the relay off or create a button that toggles the relay on and off. It's up to you and easy to configure with the N-Button Lite software!
 |
 |
 |
 |
Relay Status Relay Status widgets shows the status of the relay automatically. Just a glance at your desktop will show the status of the relay!
|
 |
 |
 |
Desktop Meters
Desktop Meters can be created for real time level readings of any variable input sensor. "It's like having a meter right on your desk for constant monitoring". Meters can be created for temperature sensors, moisture sensors, light meters and others. Read the sensor and create relay buttons that will allow at-a-glance determination of the relay status. Best of all the increments on the meter can be fully customized to fit your needs and the meters will work with this board!
Save 40% on N-Button Today
Limited time offer! Order the N-Button Lite with a relay board and get it for the unbelievable price of just $29.00. That's a discount of 40% off the retail price! If you purchase the full N-Button it's just $99.00 with the purchase of a relay board and that's a 41% savings off retail price! Desktop control, sensor meters and backgrounds plus all the customization for just one low price, purchase your copy of N-Button Lite today.
Free ProMOTE Software
ProMOTE Lets you Control NCD Devices from your Phone, PDA, Pocket PC, or Computer! Create your OWN Interface to Control NCD Devices with NO PROGRAMMING!!...Best of All...It's FREE!!!
The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!
Attention: Relays Provide No Voltage Output
Please Note: Relays do NOT provide a voltage output. They provide a contact closure output, exactly like the terminals found on a light switch at your local hardware store. Wiring to a relay will be slightly different depending on the model controller you choose.
For wiring information see our Relay Logic page.
Bluetooth Relay Controller 2-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D | |
|
Quantity in Basket:
None
Code: ZADR230PROXR_ZBT Price: $205.00 Shipping Weight: 2.00 pounds | |
| Bluetooth Relay Controller 2-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D | |
