ZADR1620PROXR_XSC XSC Long Range Relay

XSC Long Range Wireless Controller 16-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D

XSC Long Range Relay
XSC has the capabilities to cover distances of up to 15 miles with an outside antenna installed!
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

XSC Long Range Wireless Controller 16-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D

$479.00/ea


Resources

Product Resources:

Download Product Manual
Configuration Utility Download Latest X-CTU XSC Configuration Utility (Digi X-CTU Software lets you set advanced features of the XSC Module, not required for most applications)
Download Example Software and Source Code

Software Development Tools:

Download the
NCD Component Library		 The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.




This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.

Features

  • Wireless USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating Systems
  • Plug In, Open the COM Port and Start Sending Commands
  • 8-Channels of 8-Bit or 10-Bit A/D
  • Expandable to control up to 256 Relays using the XR Expansion Port
  • 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
  • Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
  • Add Relays to this Controller is your Needs Ever Grow
  • Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
  • CPU Status LEDs Show Command Processing Activity
XSC Long Range Relay
XSC Relay Mechanical Drawing

Mechanical Drawing

This Product:

ZADR1620PROXR_XSC
Ratings AC DC
Voltage 240 24
Amperage 20 20

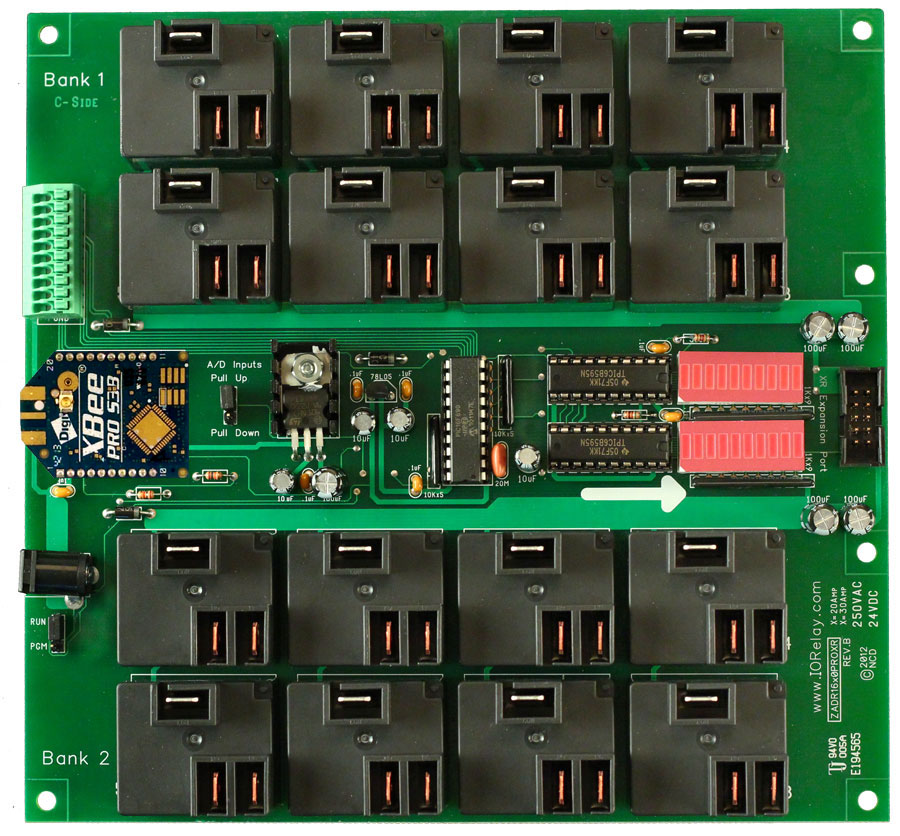

XSC Wireless Relay
 XSC Long Range Wireless Controller 16-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D
Stock#: ZADR1620PROXR_XSC
1-9 $479.00

Related Products:

ZADR1630PROXR_XSC
XSC Wireless Relay
 XSC Long Range Wireless Controller 16-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D
Stock#: ZADR1630PROXR_XSC
1-9 $540.00
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
National Control Devices, LLC
www.controlanything.com
Since October, 1995

XSC Long Range Wireless Controller Enhanced with A/D

Take all the Power of the ProXR Series Relay Controllers
...add a XSC Long Range Wireless Interface:

Long Range Wireless Control is Effortless!

XSC Long Range Wireless has the capabilities to cover distances of up to 15 miles!  To cover these distances an outside antenna must be installed and can be purchased with the controller.  XSC Long Range Controllers will be available in all configurations from single relay to 32 Channel relay boards and in SPDT, SPST and DPDT relay options.  As with all our controllers this series is built with expansion in mind and can control up to 256 relays and of course are SignalSwitch.com compatible.  Being SignalSwitch.com compatible means that the board can be controlled over the internet, with up to 15 miles from your internet connection.

XSC Long Range Antenna Long Range Antenna

An outside antenna will need to be installed in order to reach the 15 mile limit of these devices.  When you choose this optional antenna we will include everything you will need to install this except for the pole. Included will be the Cushcraft PC9013 antenna, 20 feet of cable (longer cables are not recommended) and the connector to connect the board to the cable.  Purchase a pole to mount the antenna from your local home improvement store and install the antenna.  Connect the board to the antenna via the provided cable and start sending commands.
XSC Long Range Wireless Relay Controllers are ideal for Controlling Devices outdoors over long distances. With the External Long Range Antenna this device is capable of talking to any XSC Relay Controller within a 15 Mile Radius

About ProXR

All our XSC Long Range Wireless controllers are part of the ProXR series controllers.  If you have developed software that works with one ProXR controller, than it will be possible to use this same software to control ANY ProXR controller without modification.  There are no new protocols to learn, no new issues to resolve.  Just simple compatibility, just like every other ProXR controller before it, just like every other ProXR controller after it.

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allows you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port.  All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

Read More About the ProXR Standard

A/D Conversion

Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.  Built-In Pull-Up/Down Resistors keep the inputs quiet.  Eight Different A/D Sample programs are available in the NCD Component Library.  These samples are available as a free download and are compatible with Visual Studio.   We've got sensors!  Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.

Read More About Analog to Digital Conversion

XSC Long Range Wireless Controller 16-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D


  Quantity in Basket: None
Code: ZADR1620PROXR_XSC
Price: $479.00
Shipping Weight: 3.00 pounds

RoHS (Lead Free) Options:
Non-RoHS Compliant
RoHS Compliant (+$10)
Do you need a +12VDC Power Supply?:
Please Choose an Antenna:
Please Choose an XSC Modem:
RoHS (Lead Free):
Non-RoHS Compliant
RoHS Compliant 60-Day Production Time

Quantity:
