UAD1216 Ultra Series Expansion Module

Ultra Series 16-Channel 8-Bit/12-Bit A/D Expansion Module

	Control this Device Over the Internet Signal Switch Compatible

	12-Bit 16-Channel A/D Expansion Module $109/ea

RESOURCES:
	Download our Guide to Using NCD Ultra Series Expansion Modules

8-Bit/12-Bit Analog to Digital Conversion per Channel

16 Input Channels

Connect Additional Expansion Modules End to End with Supplied Cables

Ground and 0-5VDC Input Channel Terminal Blocks

REQUIRES ULTRA SERIES CONTROLLER WITH VERSION 2.0 FIRMWARE OR DEVICE CAPABLE OF USING ULTRA SERIES EXPANSION MODULES

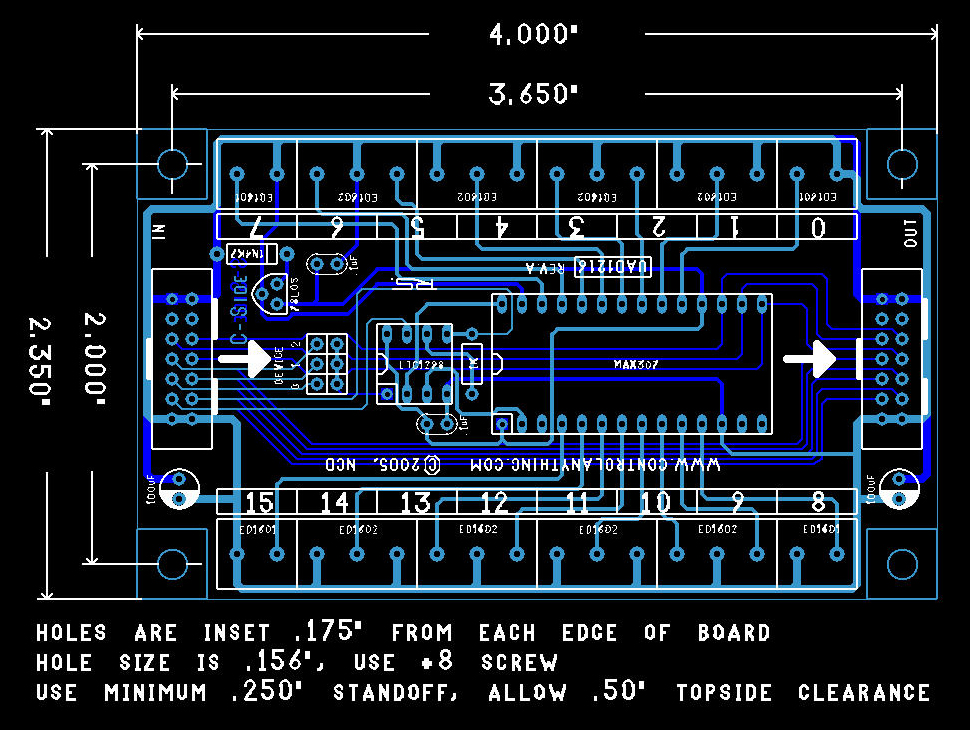

MECHANICAL DRAWING

12-Bit 16-Channel A/D Expansion Module
	This Board Is An Expansion Module And WILL NOT Work On It's Own
*Stock #: UAD1216*
Qty 1	$109/ea

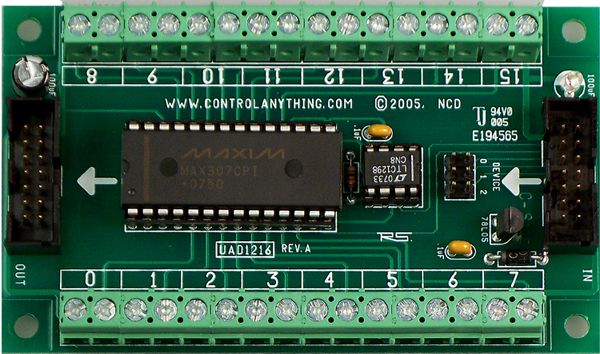

(click above picture to enlarge)

Analog to Digital Expansion Module

The Expansion Module can add A/D inputs to
any Device in our lineup or any compatible relay controller!

Add A/D Outputs to any NCD ProXR
Controller with a UXP Expansion Port

The UAD1216 is an 8-Bit/12-Bit 16-Channel Analog to Digital Converter Expansion Module designed to attach to any Ultra Series controller. Blue Connectors shown above are used to connect a ground and an analog signal source from 0-5VDC. Black connectors on each end are used to chain multiple Ultra Expansion modules to a single Ultra Port.

This design consists of a high-quality Dual Channel 12-Bit A/D converter connected to a dual 8-channel multiplexer. To use this device, simply send a few command bytes to your Ultra Series controller, your Ultra controller will then communicate to this expansion module and respond with 8-Bit/12-Bit data. Ultra series controllers are capable of reading a single channel at a time or all 16 channels at once using a Wireless or RS-232 connection.

Up to three UAD1216 expansion boards can connect to a single Ultra Port. Most Ultra Series controllers have two Ultra Ports, allowing you to monitor up to 96 Analog Inputs. Includes connection cable. Power is supplied by the Ultra Series Controller.

Should you have any questions, please contact us.

National Control Devices, LLC

www.controlanything.com

Since October, 1995

Ultra Series 16-Channel 8-Bit/12-Bit A/D Expansion Module

Quantity in Basket: None
Code: UAD1216
Price: $109.00
Shipping Weight: 0.75 pounds

RoHS (Lead Free):

	Non-RoHS Compliant
	RoHS Compliant 60-Day Production Time

Quantity:
