Relay Control by NCD: 8-Channel 10-Bit A/D Dual XR Controller with RS-232 Interface

RSIOADXR RS-232 A/D Dual XR Controller

8-Channel 10-Bit A/D Dual XR Controller with RS-232 Interface

Imagine the possibilities...unlimited control, data collection, networking, communication, the perfect integrated computer control solution offers more power, flexibility, expandability and did we mention RAW SPEED!

Control this Device Over the Internet

Signal Switch Compatible

8-Channel 10-Bit A/D Dual XR Controller with RS-232 Interface

$99.00/ea

Product Resources:

	Download Ultra Configuration and Example Programs
	Product Manual

Software Development Tools:

Download the
NCD Component Library

The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wired Communications

Learn the basics of wired communications and find the right wired controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

This movie will explain the different expansion options that can be used with our controllers.

Features

Up to 512 External Controlled Relays
Expandable to 4096 Contact Closure Inputs
Expandable to 96 Channels 12-Bit A/D Converter
XR Relay Expansion Port Allows you to ADD 64 Relays Banks to this Controller
4 Status LEDs
User Programmable Dual 8-Bit TTL/CMOS Input/Output Data Buss
8-Bit/10-Bit/8-Channel A/D Converters
8-Channel 8-Bit High-Speed A/D Conversion
RS-232 Communications up to 115.2K Baud with Full E3C Compliance

Analog to Digital Converter

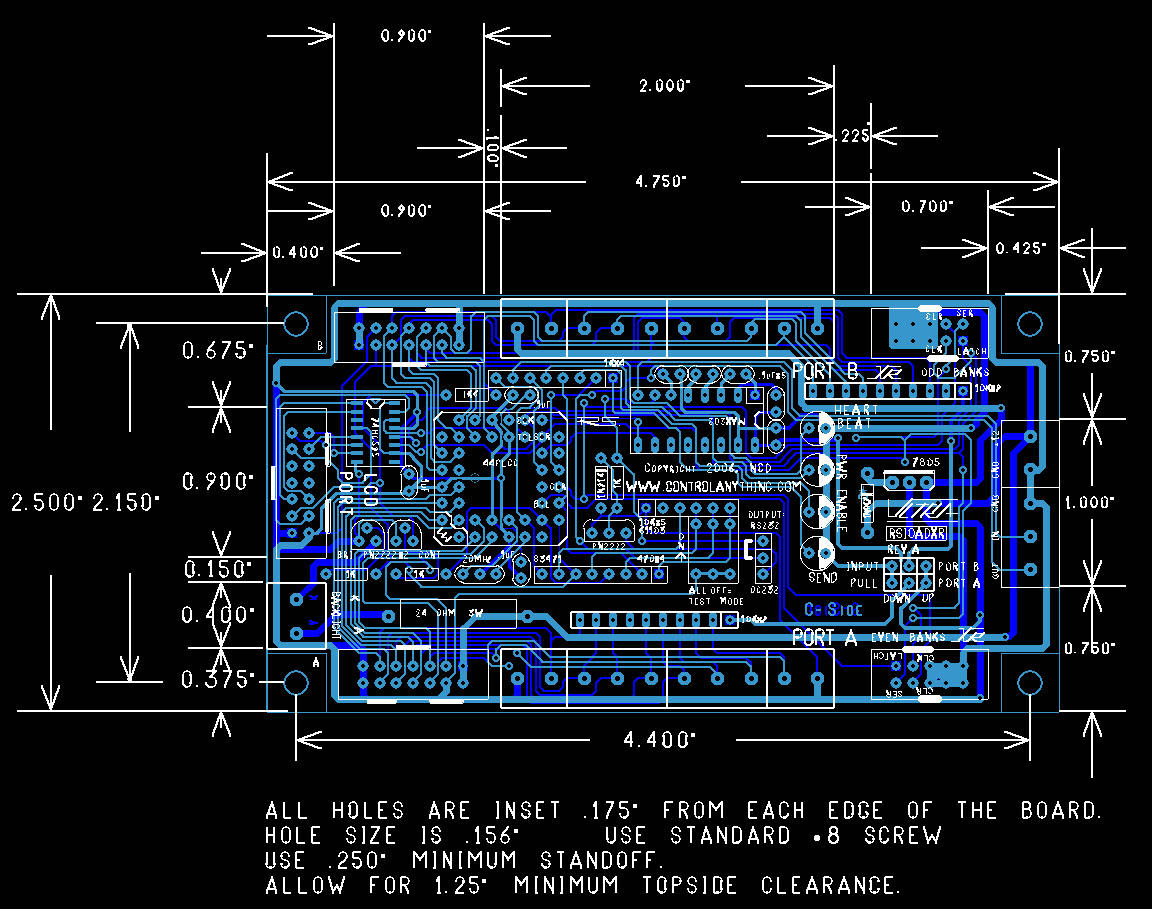

Mechanical Drawing

This Product:

RSIOADXR

	8-Channel 10-Bit A/D Dual XR Controller with RS-232 Interface
Stock#: RSIOADXR
1-9	$99.00

Related Products:

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

National Control Devices, LLC
www.controlanything.com
Since October, 1995

Ultra Series Controllers offer more power, flexibility, networkability, expandability, and raw speed than any other multifunction controller we have ever designed. High-Speed RS-232 Data Collection and Control is now just a simple matter of imagining what you want to do. Our development tools and software make it easy to integrate computer control into the toughest machine control applications in minutes rather than months.

The Ultra Series multifunction controllers allow you to control up to 512 external relays using dual XR Relay Expansion ports, providing THE ultimate computer control solution.

All relay outputs are latched. Simply send a command to turn on a relay, or a different command to turn off a relay. You can control individual relays or all 512 relays at one time.

But we didn't stop there. The Ultra Series relay controllers are also capable of 8-Channel 8-Bit or 10-Bit Analog to Digital Conversion exceeding 350 samples per second. Two I/O data ports allow you to monitor standard logic level inputs or set TTL outputs, all under computer control.

An optional 40x2 Character LCD display integrates a fully programmable messaging solution, including software controlled backlight brightness (256 levels) and software controlled LCD contrast adjustment (256 levels).

Our Ultra Series Controllers offer RS-232 control at up to 115.2K Baud, making our Ultra Series the fastest computer control solutions we have ever provided.

E3C compliance allows you to control up to 256 devices from a single serial port. Just assign each controller a device number and start speaking to each device by its number. It is that simple.

Ultra series controllers are what we call "Confirming" controllers, meaning that every command you send to the controller, you always receive confirmation that the command has been processed, ensuring reliable communication in those mission critical applications.

Quick Start Kits

Also available is our QS12 Quick Start Kit. Kit includes a high quality regulated switcher supply, serial cables, and an RSIO adapter board used to add a standard serial and power connector to this relay controller. This Quick Start Kit can be purchased during checkout of this controller.

Quick Start Kit: QS12

Quick Start Kits provide everything you need to begin using your RS232 relay controller. Kit includes a high quality regulated switcher supply, serial cable, and RSIO adapter (shown below).

QS12 RS232 Quick Start Kit

$49

Questions?

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

8-Channel 10-Bit A/D Dual XR Controller with RS-232 Interface

Quantity in Basket: None
Code: RSIOADXR
Price: $99.00
Shipping Weight: 0.75 pounds

OPTIONAL: Quick Start Kit, Includes Serial Cable, Regulated +12 Volt Switcher Power Supply, and RSIO Serial Adapter $49:

	No Thanks! I don't need a Quick Start Kit
	US - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply
	US RoHS - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+10)
	Intl - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$12)
	Intl RoHS - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply w/4 Adapters (+$22)

OPTIONAL: USB to RS-232 Serial Adapter (Above Option Recommended) $24

Quantity:

8-Channel 10-Bit A/D Dual XR Controller with RS-232 Interface
