Relay Control by NCD: LOW COST 1-Channel 20A SPDT Relay Controller with RS-232 Interface

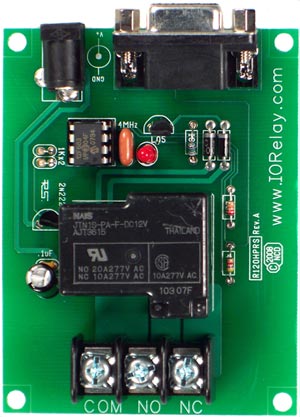

R120HPRS RS232 Relay

LOW COST 1-Channel 20A SPDT Relay Controller with RS-232 Interface

Reliable Serial Communications will suit any control needs.

Control this Device Over the Internet

Signal Switch Compatible

LOW COST 1-Channel 20A SPDT Relay Controller with RS-232 Interface

$29.00/ea

Product Resources:

	This Device is E3C Complaint allowing 256 NCD Devices to Share a Single RS-232 Serial Port.
	Download the Product Manual
	Download Visual Basic 6 Example Source Code
	Download Example Software and Source Code

Software Development Tools:

Download the
NCD Component Library

The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wired Communications

Learn the basics of wired communications and find the right wired controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

This movie will explain the different expansion options that can be used with our controllers.

Features

9600 Baud Operation
Relay Status LEDs
Quick Connect Terminal Blocks
TTL RS-232 Inputs
+12 Volt Operation, 2-Wire RS-232
Overkill Transistor Drivers
No-Click Power-up
2-Way Communication Capable

9600 Baud Operation
Relay Status LEDs
Quick Connect Terminal Blocks
TTL RS-232 Inputs
+12 Volt Operation, 2-Wire RS-232
Overkill Transistor Drivers
No-Click Power-up
2-Way Communication Capable

Quick Connect Terminal Blocks

Serial Relay

Mechanical Drawing

This Product:

R120HPRS

Ratings	AC	DC
Voltage	240	24
Amperage	20	20

	LOW COST 1-Channel 20A SPDT Relay Controller with RS-232 Interface
Stock#: R120HPRS
1-9	$29.00

Related Products:

R120HP

	LOW COST 1-Channel 20A SPDT RS-232 Relay Controller
Stock#: R120HP
1-9	$19.00

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

National Control Devices, LLC
www.controlanything.com
Since October, 1995

RS-232 Serial Relay Controller

Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port. Mix and match up to 256 devices in any combination. Speak to each device individually or all devices at once.

To control the this Relay Controller, simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.

Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.

Features include no-click startup, LED status lights, and E3C compliance. Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.

Setup for the R120HPRS RS232 Relay shown above. Simply connect the Power and the Serial Cables and start sending commands.

Essential Accessories: PWR12 and SER
These Accessories provide everything you need to begin using your RS232 relay controller. Accessories needed for this board are a high quality regulated switcher supply and a serial cable (shown below). These items are available at checkout when purchasing the controller.

PWR12 12 Volt 1.25 Amp Power Supply	$24/ea	SER 6 ft. Serial Cable DB9M-DB9F	$6/ea

LOW COST 1-Channel 20A SPDT Relay Controller with RS-232 Interface

Quantity in Basket: None
Code: R120HPRS
Price: $29.00
Shipping Weight: 0.50 pounds

Do you need a Power Supply?:

	No Power Supply will be Included
	120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+$24)
	100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$36)

Do you need a Serial Cable?:

	No Serial Cable will be Included
	6 Foot Serial Cable DB9M to DB9F (+$6)

Quantity:
