ProMOTE Software

Wireless Communication Using a Cell Phone, PDA, Laptop or PC

ProMOTE Lets you Control NCD Devices from your Phone, PDA, Pocket PC, or Computer!
Create your OWN Interface to Control NCD Devices with NO PROGRAMMING!!...
Best of All...It's FREE!!!

RESOURCES:

NEW TO ProMOTE? GET STARTED HERE
Click the above link for an article on our Exclusive ProMOTE Software - Coming Soon

Download ProMOTE Software - FREE!!

Download ProMOTE Manual - Coming Soon

Release Date April 1, 2008.

Bluetooth Wireless Interface allows you to use your cell phone or PDA as a remote control

Software also allows wireless communications from your PC

Compatible with any NCD
Bluetooth Relay Boards

Expandable to control up to 256 Relays using the XR Expansion Port

Pulse & Duration timers
can be assigned

One button upload to your
cell phone or PDA

Use any cell phone with Windows
Mobile 6 installed

Use any PDA with Windows
2003SE installed

Bluetooth wireless has a
100 meter range

REQUIREMENTS

Operating Systems For
Cell Phone / PDA

Windows Mobile 6
Windows 2003SC

Operating Systems For PC

Windows 2000 Greater

ProMOTE Software

Bluetooth Wireless Control

	Fully Operational Program
Stock #: ProMOTE Software	FREE

(click above picture to enlarge) cell phone not included

National Control Devices, LLC

www.controlanything.com

Since October, 1995

Control Any NCD Bluetooth Device!

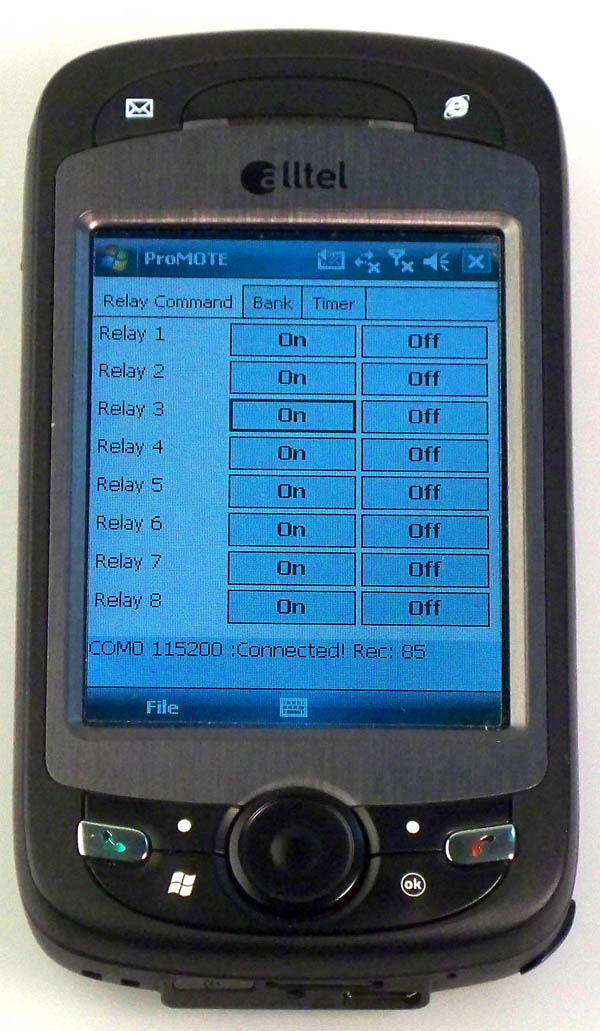

Turn your cell phone into a working remote control!
Configure your own buttons to fit your needs!
With No Programming Wireless Control is Effortless!

So, you are looking for an easy way for your laptop or PDA to talk to a relay controller with no programming. No Problem, we have just the thing. Data Collection and Control from a Single Controller allows any Bluetooth equipped computer to talk to our devices as though they were directly connected to a serial port....with NO DRIVERS REQUIRED!

The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!

Use this with any of our extensive line of Bluetooth Relay Boards.

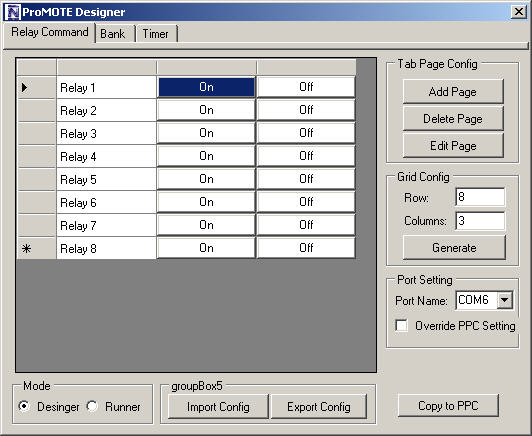

Here's how it works. ProMOTE Designer allows you to configure the software to fit your requirements and make it easy to use. The Relay Command tab (shown here) allows you to set the caption of the button and the content (what the controller does). We have all the commands that you will need and they can be found on our ProXR Standard for I/O and Relay Control page. Simply put in the number code and the controller does it!	(click above picture to enlarge)

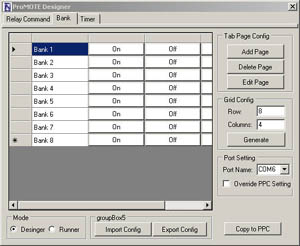

Configure the Bank Next, configure the bank the relays are in. With a preset configuration of eight banks this can accommodate up to 64 relays. Again, the command code can be found on the ProXR Standard for I/O and Relay Control page.	(click above picture to enlarge)

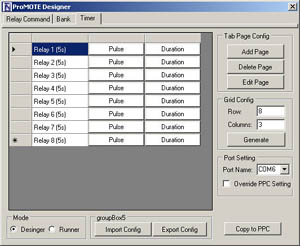

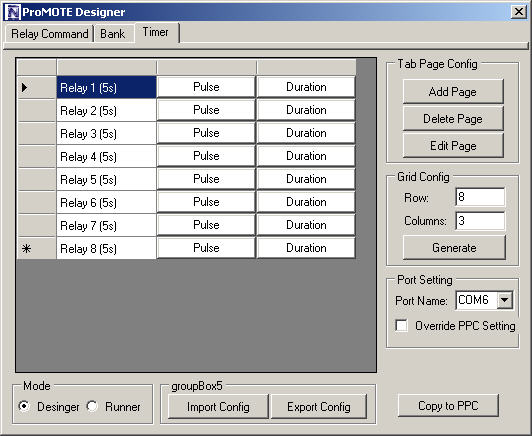

Set Pulse or Duration Time Finely, a pulse or duration timer can be set. This can be done in the Timer tab. If you require the relays to be turned off after a set time you can find the code in the ProXR Standard for I/O and Relay Control page.	(click above picture to enlarge)

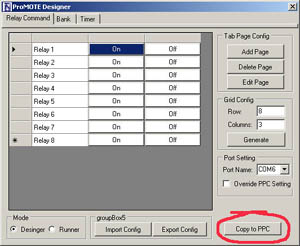

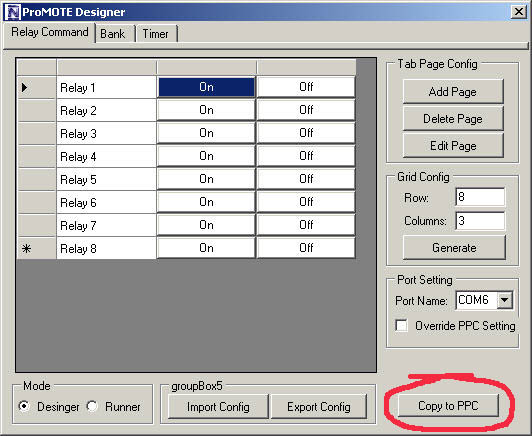

One Button Upload Once you have configured the program connect your cell phone or PDA to the computer via a USB cable and click the "Copy to PPC" button for a one button upload of the program. You can now unplug the Call phone/PDA and it will communicate with the Bluetooth board with the functions you set.	(click above picture to enlarge)

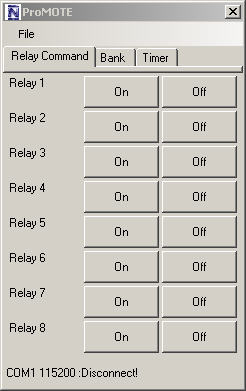

PC ProMOTE Also installed on your computer with ProMOTE is PC ProMOTE. This allows you to use the same functions the was configured for your wireless connection on a PC. No programming and no extra configuration needed! The PC ProMOTE can also work with any controller in our extensive line of relay boards! If you have a USB, ZigBee, RS-232 or Wi-Fi controller your can use PC ProMOTE. Simply connect with the interface your have chosen, configure ProMOTE and you are ready to go!

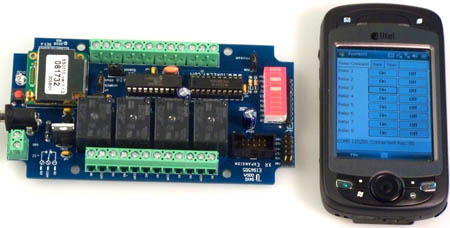

Above: A Cell Phone with a BTADR45ProXR Relay Board. Control relays with no programming knowledge. Notice relay one and three are on. (click picture to enlarge)

Write your own software
If you feel comfortable writing your own software you can do that as well. Our Bluetooth devices do not need the ProMOTE software to run. You can program you own software to work with any of our boards. It works like this. Power up our controller. Boot up your laptop or PDA. Use your Bluetooth software built into your computer to Pair this device with your computer. Once Paired, this device will mount as a COM port on your PDA or Laptop. Now all you have to do is write a simple program to open the COM port of your computer to talk to this device.

If you are already using one of our ProXR series controllers connected to the Serial Port or USB Port, then you will not have to make any software changes. This device works as though it were directly connected to a serial port on your PC, offering 100% transparent wireless serial communications.

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allows you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
