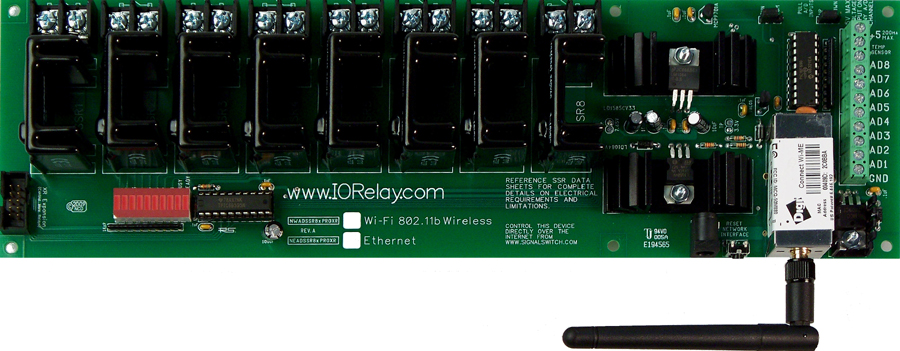

NWADSSR8xPROXR_MIX Solid State Relay

WiFi 802.11b 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D

Solid State Relay Controller
Unmatched Solid State Reliability and Induction Tolerance!  Data Collection and Control with Future Expandability in Mind.  This Ethernet ProXR Series Controller is Feature Rich and Ready to Grow with your Needs!
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

WiFi 802.11b 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D

$369.00/ea


Resources

Product Resources:

NEW TO WIFI COMMUNICATIONS? GET STARTED HERE
Click the above link for an exclusive article on Network Communications
Download Product Manual
Download RealPort Drivers to Map a Network IP Address to a COM Port, This is the Easiest Way to Get Started Controlling this Device
Download Example Software and Source Code

Software Development Tools:

Download the
NCD Component Library		 The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

Solid State Relays Are Not Suitable for Some Applications.
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)

Features

Solid State Relay

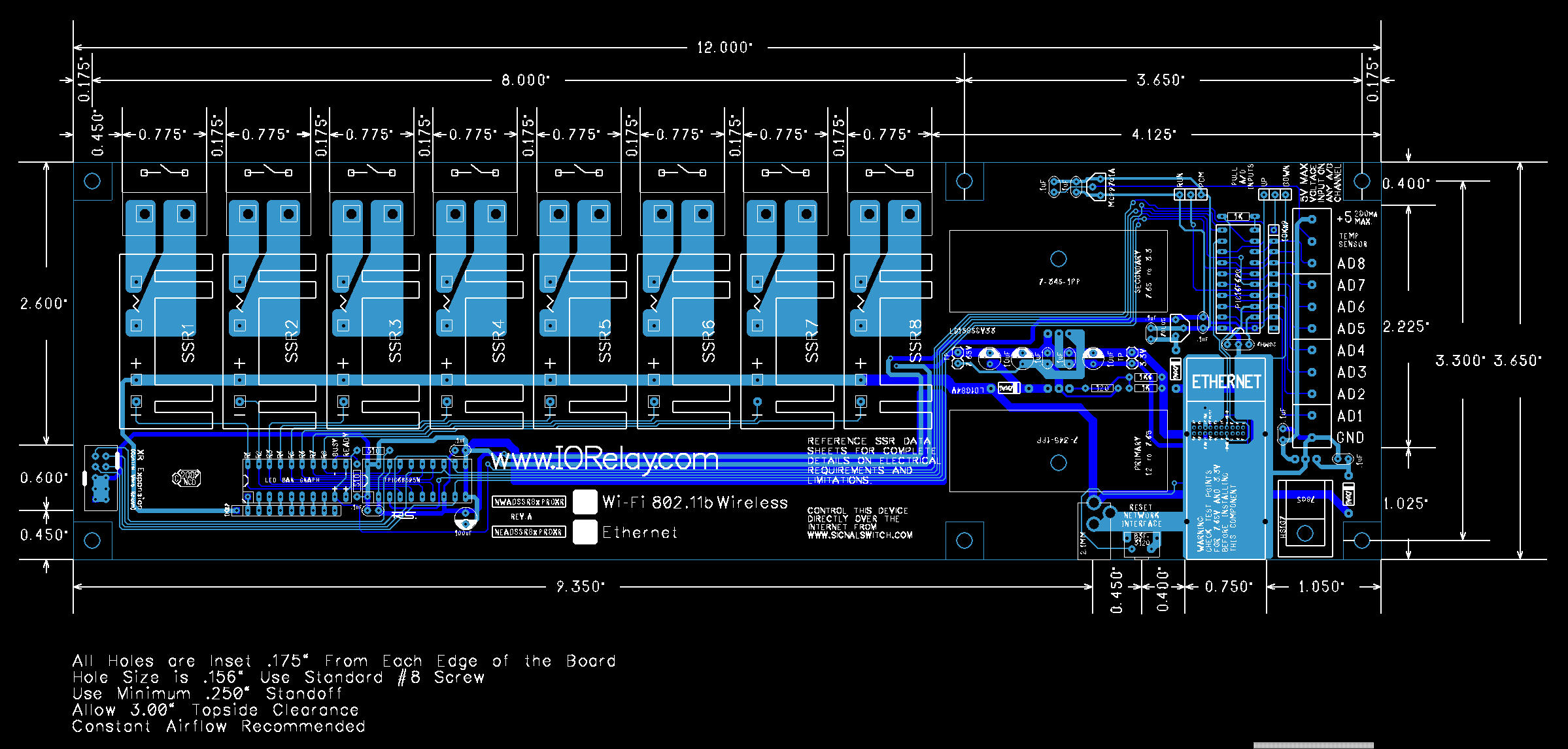

Solid State Relay Mechanical Drawing

Mechanical Drawing

This Product:

NWADSSR8xPROXR_MIX
Solid State Relay
 WiFi 802.11b 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: NWADSSR8xPROXR_MIX
1-9 $369.00

Related Products:

NWADSSR8xPROXR
Solid State Relay
 WiFi 802.11b 8-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: NWADSSR8xPROXR
1-9 $369.00
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
National Control Devices, LLC
www.controlanything.com
Since October, 1995

Solid State: A Practical Alternative to Mechanical Relays!

Mechanical Relays have a good home in low-cost control applications.  But for some users, only solid state switching will do.  Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance.  Many inductive control applications require a solid state relay.  Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.

Simply Network this Wi Fi Board to your computer and power up the device. In no time you'll be talking to the board and any attached Expansion Boards.
With no extra Programming you can talk to our Networking Boards via the Internet using SignalSwitch.com, without a dedicated computer for the board.

Wi-Fi Communications

Wireless Network Data Collection and Relay Control Leaps Ahead into Today's Networks!!! Imagine computer controlled switching and data collection from anywhere on your local area network...or from anywhere in the world!!!

RealPort Virtual COM Port drivers map a Network IP address to a COM port on your network...allowing you to control this device as though it were directly connected to a serial port on your PC.  So network control is now as easy as speaking to a COM port on your local computer....except this device works over the network.  This device also supports Telnet and Data Encryption with Password Protection.  This device includes a Digi Connect Wi-ME Wireless Network Interface and Embedded Web Server from www.digi.com.

What is ProXR?

ProXR refers to a set of standardized commands used for computer control and data collection.  A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility.  This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software.  ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Bluetooth, Fiber Optic, Wireless ZigBee/Mesh, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer.  Let ProXR controllers manage the rest.  Detailed information about the ProXR command set can be found in the ProXR Manual.

Building a solid foundation for future hardware is what ProXR is all about.  We have worked hard to modularize the ProXR firmware in such a way that it can support growth of features without sacrificing backward compatibility.  Most controllers produced from 2007 onward will support our ProXR command set.  These controllers will also include a XR Expansion Port, allowing you to add relays to any controller you choose.  So if your needs for computer control increase, our controllers will be ready for your growth.

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port.  All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

A/D Conversion

Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.  Built-In Pull-Up/Down Resistors keep the inputs quiet.  Eight Different A/D Sample programs are available in the NCD Component Library.  These samples are available as a free download and are compatible with Visual Studio.   We've got sensors!  Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.

Read More About Analog to Digital Conversion

Choose a Solid State Relay for This Controller:

TYPE A

Crydom
D2W202F

SPST-NO

 2A 240VAC Normally Open SPST
Zero Crossing Turn On
Built-In Snubber Circuit
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
D2W Series Data Sheet		 $12.00/each

TYPE B

Crydom
CX240D5

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $15.00/each

TYPE C

Crydom
CX240D5R

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $16.00/each

TYPE D

Crydom
PF240D25R

SPST-NO

 25A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $28/each

TYPE E

Crydom
PF480D25

SPST-NO

 25A 480VAC Normally Open SPST
Zero Crossing Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $30/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments.  Forced Air May be Required to Achieve Maximum Load Rating.  NCD does NOT Recommend Driving any Relay at Maximum Load.  It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings.  NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads.  Solid State Relays CANNOT be used for Switching DC loads.  Solid State Relays May ONLY be used in AC Switching Applications.  Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met.  External Snubber Circuitry May be Required for Certain Applications.  If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit.  This May Indicate Minimum Load Requirements Have Not Been Met.  Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase.  Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.

WiFi 802.11b 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D


  Quantity in Basket: None
Code: NWADSSR8xPROXR_MIX
Price: $369.00
Shipping Weight: 1.00 pounds

Customize your Controller by Selecting up to 8 Different Relays:
Choose a Relay for Location #1:
Choose a Relay for Location #2:
Choose a Relay for Location #3:
Choose a Relay for Location #4:
Choose a Relay for Location #5:
Choose a Relay for Location #6:
Choose a Relay for Location #7:
Choose a Relay for Location #8:
RoHS (Lead Free) Options:
Non-RoHS Compliant
RoHS Compliant (+$10)
12V Power Supply:
  NCD Wi-Fi devices are available ONLY by special order and are NOT REFUNDABLE/RETURNABLE UNDER ANY CIRCUMSTANCES. Wi-Fi controllers are for advanced users ONLY who have extensive experience in network communications and who fully understand NCD device architecture. A Digi development kit for Wi-Fi communications is HIGHLY RECOMMENDED as this device can be difficult to work with. Technical support is limited to the articles we have posted on our web site. All Wi-Fi devices are extensively tested prior to shipment.
