Ethernet Relay with .Net Framework Communications Module
Ethernet 8-Channel 1-Amp DPDT Relay + UXP Expansion Port with Web-Browser Interface
Product Code: NEUXPR81DPDTPROXR-NET
The NEUXPR81DPDTPROXR-NET features a Network Communications Module designed to bring Network Connectivity to NCD Devices! Simply enter the IP address of the device in any browser and you are talking to the controller!

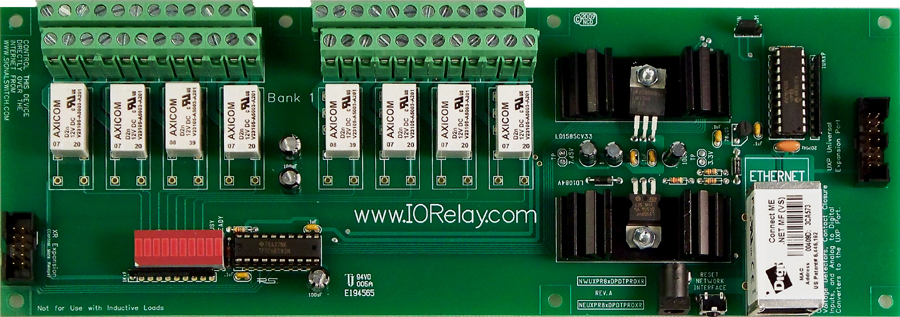

Simply enter the IP address of the device in any browser and you are talking to the controller and any attached Expansion Boards. Add Contact Closure, Potentiometer, or A/D Conversion modules with the UXP Expansion Port (right side of board). Add Relay Expansion Boards to the XR Expansion Port (left side of board).
Ethernet-NET with UXP at a Glance
- Internet or LAN Controlled Web Relays
- Supports Multiple Communication Methods Simultaneously
- Supports Direct Internet Access Without a Server
- No static IP Required
- Supports Direct Connection to SignalSwitch.com
- Includes Extensive Network Configuration Options
- Supports DHCP
- Supports Fixed IP Address
- Password Protection
- Offers 100% Emulation of ProXR AD8 Firmware
- UXP Expansion port for Adding Additional:
- Contact Closure Modules
- Digital Potentiometers
- Analog to Digital Conversion Modules
Video Resources
(Select a thumbnail to view the video)Introduction to Ethernet
Learn about Ethernet Communications and how it is utilized by our Relay Controllers
Ethernet Setup
Watch as we show you how to Set Up the Hardware and explain your options for the Software necessary to Communicate to your Controller
Web-i Introduction
Get started with Web Control
Virtual Serial Port Setup
Learn how to use Digi Realport to Set Up a Virtual Com Port to communicate to your Networking Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
Related Products:
NEUXPR83DPDTPROXR-NET
 |
Ethernet 8-Channel 3-Amp DPDT Relay + UXP Expansion Port with Web-Browser Interface |
| Stock#: NEUXPR83DPDTPROXR-NET | |
| 1-9 | $290.00 |
NEUXPR85DPDTPROXR-NET
 |
Ethernet 8-Channel 5-Amp DPDT Relay + UXP Expansion Port with Web-Browser Interface |
| Stock#: NEUXPR85DPDTPROXR-NET | |
| 1-9 | $310.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC
www.relaycontrollers.com
Since October, 1995 .
Ethernet Relay with a .Net Framework
ZETH-NET uses Digi .Net Framework Communications Module
Pre-Programmed with NCD-NET Firmware
Allowing you to Control Anything from Anywhere with just the Internet and a Browser
We have just taken Network Communications a Huge Step Forward!
Watch this Video and Check Out our
Demo Page to Learn About this Powerful New Controller
ZETH-NET uses Digi .Net Framework Communications Module Pre-Programmed with NCD-NET Firmware, Allowing a Web Browser to Access and Control an NCD Device from a Local Network or Anywhere in the World. Go to our demo page and take control of one of our -NET controllers here in the offices of NCD from anywhere in the world.
Control this Device Remotely from Anywhere in the World
Control this Web Relay from anywhere you can get an internet connection and on any device with a web browser. That means that your computer, PDA, cell phone, iPhone or iPad becomes a remote control for this device! This new services is available through our website Link.Signalswitch.com. Each .NET module has a unique MAC address printed on the top and you can simply enter http://link.signalswitch.com/MacAddress into the URL. Example: http://link.signalswitch.com/00409D43F71C and then type in the password. It's that simple, after a few moments you will be granted access to the controller. A static IP address is NOT REQUIRED for remote access and the device and computer MUST have separate internet connections.You can Demo This Interface Now at http://www.signalswitch.com:8080/ and control a Live Board here in our office.
Control this Device from a Local Area Network
This device can also be controlled over a Local Area Network. You may need to log into your router to find the IP address. Take note of the MAC address printed on the top of the .NET controller. Your router will display a list of IP addresses and associated MAC addresses. Take note of the IP address that matches the printed MAC address on your controller. Open any web browser and type the IP address into the URL.About ProXR
If you are new to our products, we would like to introduce to you is a term we call "ProXR". ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Wireless ZigBee, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
UXP Expansion Port
This board is equipped with a UXP Expansion port which allows you to add add capabilities beyond basic relay control to your application specifically for the purpose of speaking to various expansion modules. Where the XR Expansion port allows you to add additional relays to the board, the UXP Expansion Port allows you to add functionality to the board. With the UXP Expansion Port you can add Digital Potentiometers, Contact Closure modules and Analog to Digital Expansion Modules to this board.
ZETH-NET Web Relay Features
| Additional Features: | ZETH-NET |
| Supports Direct TCP/IP Communications | YES |
| Supports Direct Connection to SignalSwitch.com | YES |
| Supports Multiple Communication Methods (Above) Simultaneously |
YES |
| Supports Direct Internet Access Without a Server (requires static IP) |
YES |
| Open-Source User-Upgradeable (requires development software) | YES |
| Web-Browser Interface for ProXR Series Controllers | YES |
| Web-Browser Interface for Reactor Series Controllers | YES |
| Web-Browser Interface for Taralist Series Controllers | YES |
| Web-Browser Interface for Network Configuration | YES |
| Supports DHCP | YES |
| Supports Fixed IP Address | YES |
| Password Protection | YES |
Resources
 |
NEW TO WEB RELAY CONTROL? GET STARTED WITH OUR ZETH-NET MODULES Click the above link for an exclusive article on Web Relay Communications |
| Web Relay Article | Web Relay Article |
| Download Manual | Download Product Manual |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

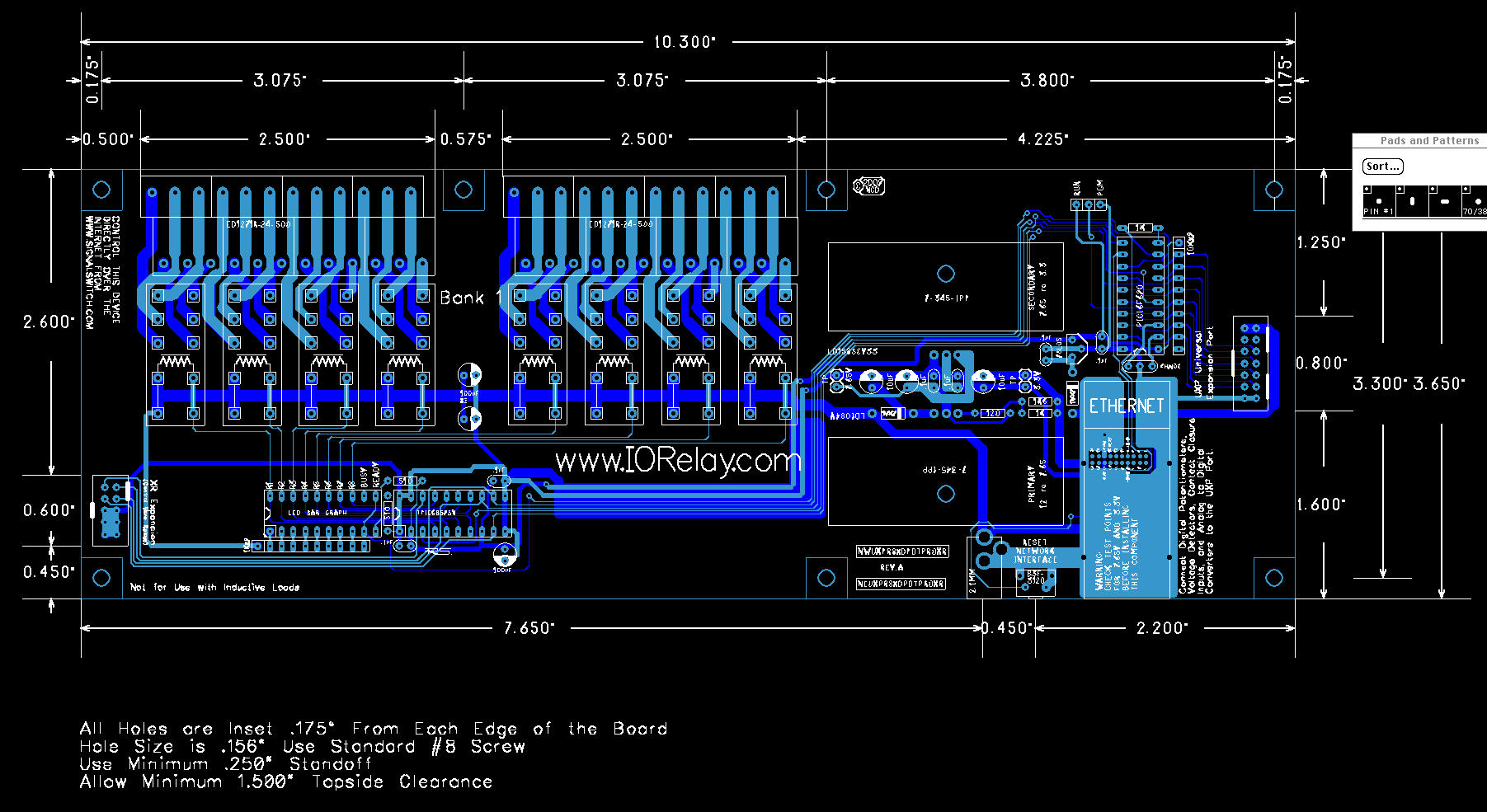

| Mechanical Drawing | Mechanical Drawing for this board |
Ethernet 8-Channel 1-Amp DPDT Relay + UXP Expansion Port with Web-Browser Interface | |
|
Quantity in Basket:
None
Code: NEUXPR81DPDTPROXR-NET Price: $270.00 Shipping Weight: 4.00 pounds | |
| Ethernet 8-Channel 1-Amp DPDT Relay + UXP Expansion Port with Web-Browser Interface | |
