Relay Control by NCD: Ethernet 16-Channel 10-Amp SPDT Relay Controller + UXP Exansion Port

Ethernet Relay with ME Firmware

Ethernet 16-Channel 10-Amp SPDT Relay Controller + UXP Exansion Port

Product Code: NEUXPR1610PROXR

NEUXPR1610PROXR will allow computer controlled switching from any computer connected to a 10/100 Ethernet network. The NEUXPR1610PROXR connects to the Ethernet port of your local network hub, allowing computer controlled switching from anywhere on the network.

Control this Device Over the Internet

Signal Switch Compatible

Ethernet 16-Channel 10-Amp SPDT Relay Controller + UXP Exansion Port

$453.00/ea

Simply connect this Ethernet Board to the Ethernet Port of your computer or to a networked Ethernet outlet and power up the device. In no time you'll be talking to the board. Add Contact Closure, Potentiometer, or A/D Conversion modules with the UXP Expansion Port. Add Relay Expansion Boards to the XR Expansion Port.

Ethernet ME with UXP Port at a Glance

Supports Virtual COM Port over Ethernet
Supports Direct TCP/IP Communications
Supports Direct Connection to SignalSwitch.com
Includes Extensive Network Configuration Options
Supports DHCP
Web-Browser Interface for Network Configuration
Supports Fixed IP Address
Password Protection
Offers 100% Emulation of ProXR AD8 Firmware
UXP Expansion port for Adding Additional:
- Contact Closure Modules
- Digital Potentiometers
- Analog to Digital Conversion Modules

Introduction to Ethernet

Learn about Ethernet Communications and how it is utilized by our Relay Controllers

Ethernet Setup

Watch as we show you how to Set Up the Hardware and explain your options for the Software necessary to Communicate to your Controller

Web-i Introduction

Get started with Web Control

Virtual Serial Port Setup

Learn how to use Digi Realport to Set Up a Virtual Com Port to communicate to your Networking Relay Controller

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wired Communications

Learn the basics of wired communications and find the right wired controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

This video will introduce you to the world of Ethernet Communications and how we implement it into our boards.
Also read our Article on WiFi and Ethernet Networking Communications.

This video will show how to set up the hardware portion of your Ethernet Relay Controller and discusses the options you have to control it via software.
Also read our Article on WiFi and Ethernet Network Communications.

This video will show you how to set up a Virtual Serial Port over your LAN using Digi RealPort.
Also read our Article on WiFi and Ethernet Communications.

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

This movie will explain the different expansion options that can be used with our controllers.

Introduction to the Web-i Control Module.

Resources:

Network Drivers NCD Base Station Software Download ProXR Manual NCD Component Library Wiring Diagrams Mechanical Drawing

This Product:

NEUXPR1610PROXR

Ratings	AC	DC
Voltage	240	24
Amperage	10	10

	Ethernet 16-Channel 10-Amp SPDT Relay Controller + UXP Exansion Port
Stock#: NEUXPR1610PROXR
1-9	$453.00

Related Products:

NEUXPR165PROXR

	Ethernet 16-Channel 5-Amp SPDT Relay Controller + UXP Exansion Port
Stock#: NEUXPR165PROXR
1-9	$413.00

Questions?

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

Shipping and Payment Information
Warranty Information

National Control Devices, LLC
www.relaycontrollers.com
Since October, 1995 .

Here's What People Are Saying!

"The controller arrived and works well! It has been interesting exploring the different ways to connect to it and use it."

Ethernet User

Ethernet ME Firmware with UXP Expansion

Uses Digi Stock Digi Connect ME firmware.
Providing a low-cost network communications solution to NCD Devices.
We have just taken Network Communications a Huge Step Forward!

For several years now, NCD has been the Only maker of a powerful Ethernet Relay Controller, but now it's time for a New Generation of Controllers. We have just taken Network Communications a Huge Step Forward by Offering a Low-Cost and a High-Power Network Communication Solution.

Two Ethernet Modules Available

	ME Firmware Includes Extensive Network Configuration Options Supports Virtual COM Port over Ethernet	Web-i Firmware Supports Multiple Communication Methods Simultaneously Web Browser Interface Direct Internet Access

Ethernet Network Module

This Ethernet relay controller is based on the Digi Connect ME Ethernet communications module. This is a great low-cost solution that has empowered our users since 2005. The Digi Connect ME firmware allows you to login to the device and setup powerful network communication options. Though it does not offer a web browser interface for relay/device control, it does offer many powerful connectivity options for advanced networks at a very low cost. ME Firmware supports Virtual COM Port Ethernet Communications, Direct TCP/IP communications, or direct communication to SignalSwitch.com. ME Firmware is only capable of handling only one of these communication options at a time however.

Easy Software Development

RealPort Virtual COM Port drivers map a Network IP address to a COM port on your network...allowing you to control this device as though it were directly connected to a serial port on your PC. So network control is now as easy as speaking to a COM port on your local computer....except this device works over the network. This device also supports Telnet and Data Encryption with Password Protection. This device includes a Digi Connect ME Ethernet Interface and Embedded Web Server from www.digi.com.

Many Communication Protocols for Advanced Users

Advanced users may want to employ other communication protocols to speak the the Ethernet Relay Controller. NCD Ethernet Relay Controllers can also be controlled using Telnet. I.P. Addresses and are automatically or manually assigned. NCD Ethernet Relay Controllers also support security protocols such as Shared Key, WEP, WPA, and Cisco LEAP with support for WEP, TKIP, and CCMP data encryption.

About ProXR

If you are new to our products, we would like to introduce to you is a term we call "ProXR". ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Wireless ZigBee, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest.

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

UXP Expansion Port

This board is equipped with a UXP Expansion port which allows you to add add capabilities beyond basic relay control to your application specifically for the purpose of speaking to various expansion modules. Where the XR Expansion port allows you to add additional relays to the board, the UXP Expansion Port allows you to add functionality to the board. With the UXP Expansion Port you can add Digital Potentiometers, Contact Closure modules and Analog to Digital Expansion Modules to this board.

Wi-Fi Adapter Available

Make this Ethernet controller Wi-Fi compatible by simply connecting the Netgear WNCE2001 Universal Wireless Internet Adapter. The WNCE2001 will connect any NCD Ethernet device to an existing 802.11 wireless network. Installation couldn't be easier with Netgear's CD-less, wireless installation. The Netgear WNCE2001 can be purchased on your own or select the Wi-Fi option at checkout to add to your order.

Ethernet with Web-i Framework

NCD Currently offers 2 variations of the Ethernet Modules. The Web-i with Web-Browser interface is also available.

Web-i is our own breed of Ethernet communications. Web-i offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the Web-i module, without the need for a server. Web-i is accessible from anywhere on your local area network or from anywhere in the world. In addition to a web browser relay control interface, Web-i devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser. Web-i also supports a simultaneous connection to SignalSwitch.com, allowing you to control the Web-i from our server, your program, or your web browser...all at the same time. Use the chart below to compare features of the ZETH-ME and Web-i Ethernet Modules. This board can be upgraded with the Web-i module during checkout.

Feature Comparison:	ME Firmware	Web-i Firmware
Supports Virtual COM Port over Ethernet	YES	-
Supports Direct TCP/IP Communications	YES	YES
Supports Direct Connection to SignalSwitch.com	YES	YES
Supports Multiple Communication Methods (Above) Simultaneously	-	YES
Supports Direct Internet Access Without a Server	-	YES
Includes Extensive Network Configuration Options	YES	-
Web-Browser Interface for ProXR Series Controllers	-	YES
Web-Browser Interface for Reactor Series Controllers	-	YES
Web-Browser Interface for Taralist Series Controllers	-	YES
Web-Browser Interface for Network Configuration	YES	YES
Supports DHCP	YES	YES
Supports Fixed IP Address	YES	NO
Password Protection	YES	YES

	NEW TO ETHERNET COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on Ethernet Communications
Ethernet Relay Article	Ethernet Article
Download Manual	Download Product Manual
Network Drivers	Network Drivers
NCD Component Library	The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.
Wiring Diagrams	These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic

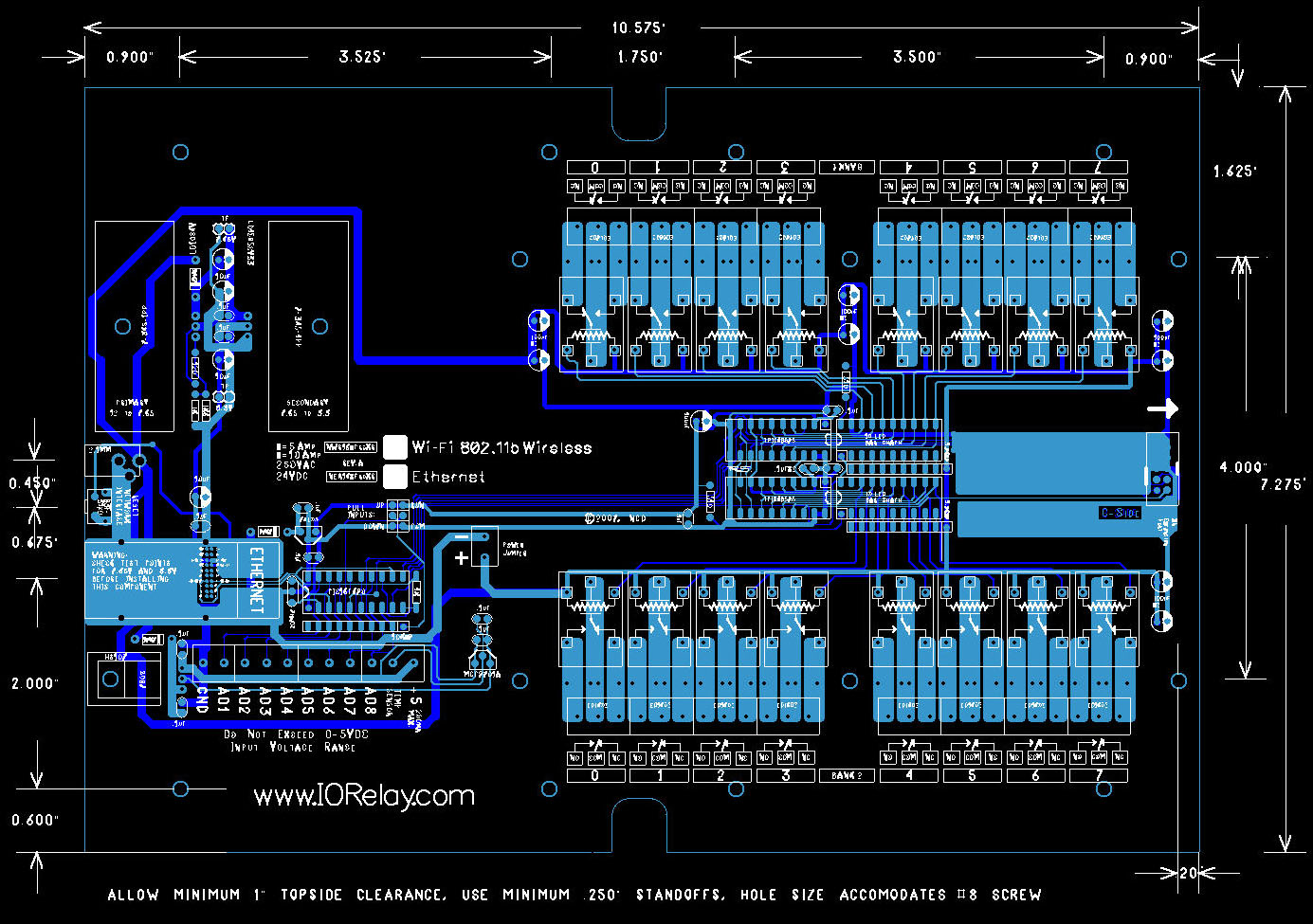

Mechanical Drawing	Mechanical Drawing for this board

Ethernet 16-Channel 10-Amp SPDT Relay Controller + UXP Exansion Port

Quantity in Basket: None
Code: NEUXPR1610PROXR
Price: $453.00
Shipping Weight: 5.00 pounds

Power Supply:

	Included - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply
	Substitute - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$12)

Ethernet Cable:

7' Ethernet Cable

Enclosure:

	Included (Undrilled +$24)
	Not Included
