NEFOI Ethernet to Fiber Optic Interface

Ethernet Interface for Fiber Optic Relays

Control this Device Over the Internet

Signal Switch Compatible

Ethernet to Fiber Optic
Interface Board
$154/ea

Provides Communication capabilities for any of our Fiber Optic Relays.

NEW TO THE FIBER OPTICS? GET STARTED HERE
Click the above link for an exclusive article on Fiber Optic communications

*RESOURCES:*
	Download Product Manual
	View Mechanical Drawing

Release Date July 14, 2008.

Use the Ethernet Port of your Computer to Talk to ANY NCD Fiber Optic Controller

With no Programming you can talk to our Networking Boards via the Internet using SignalSwitch.com, without a dedicated computer for the board.

Mounts as a COM Port, Allowing Easy Programming of NCD Fiber Optic Devices

Write your Program to Speak to a COM Port, Let this Device Handle All Communications to Fiber Optic Controllers

Ethernet Interface Supports Virtual COM Baud Rates up to 115.2K Baud

Plug In, Open the COM Port and Start Sending Commands

Optically Isolated Interface offers Superior Protection for your Computer

Use Other Fiber Optic Interface Options as your Needs Evolve

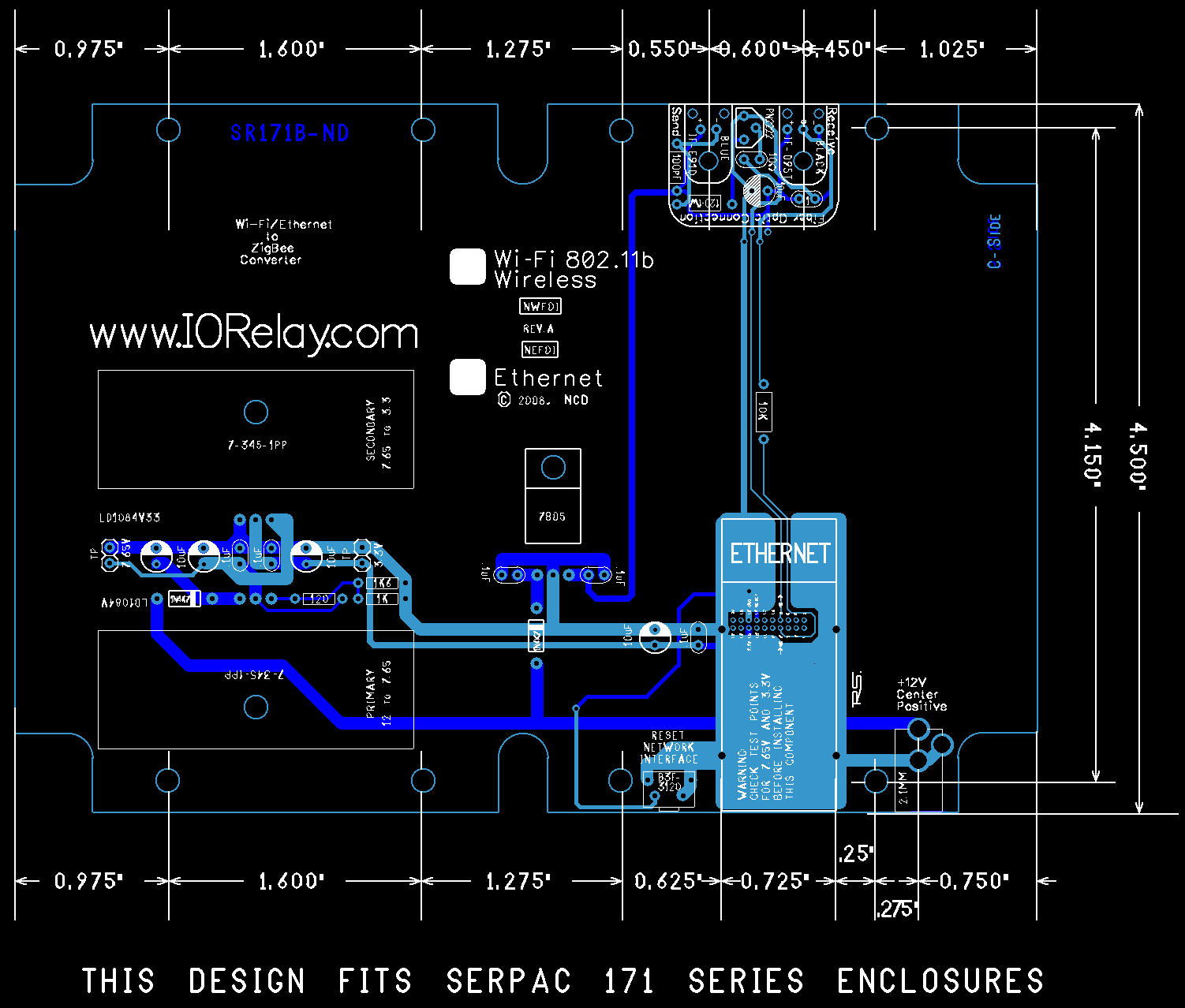

MECHANICAL DRAWING

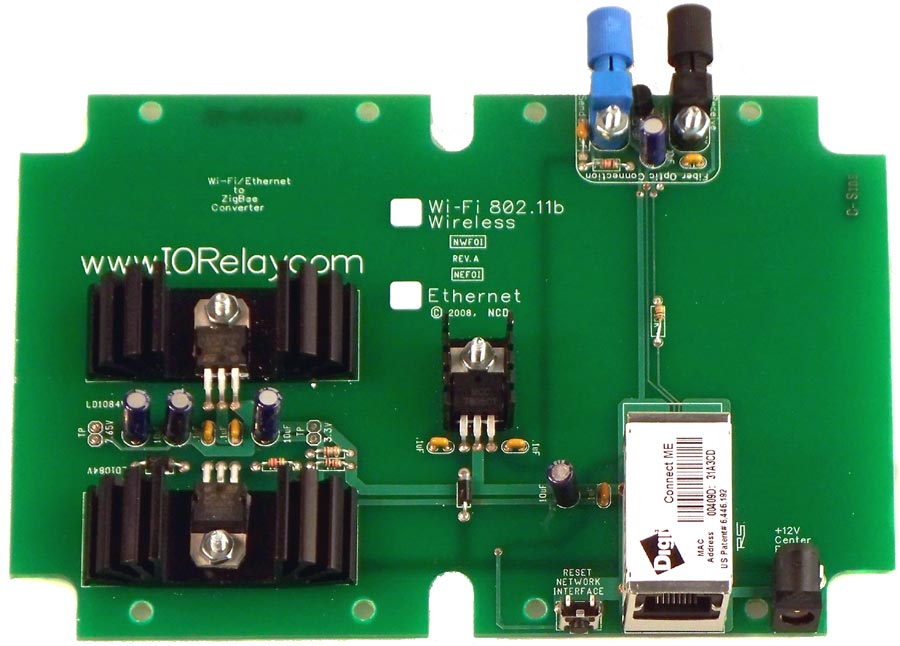

	Ethernet to Fiber Optic Interface Board
*Stock #: NEFOI*
1-9	$154/ea
(click above picture to enlarge)

National Control Devices, LLC

www.controlanything.com

Since October, 1995

Ethernet Interface for Fiber Optic Relays

The Ethernet Fiber Optic Interface controllers makes it very easy to connect any NCD Fiber Optic Device to your computer. This Ethernet Interface allows you to easily communicate to NCD Fiber Optic Devices using the Ethernet port of your computer.

This device mounts as a COM port, and handles all fiber optic communications as though it were a serial port connected to your PC. This configuration makes it very easy for any programmer to write software to speak to NCD Fiber Optic Devices.

Simply develop your application to speak to a standard serial device, let our Fiber Optic device handle the rest.

Fiber Optics offer superior noise immunity and protection of your computer for high power control applications. Fiber Optic interface controllers offer the Safest, fastest, and most reliable communication technology, allowing you to easily upgrade to other interface options as your needs change.

Superior lightning protection, noise immunity, and high induction tolerance make fiber optics the most viable choice for our most exclusive customers.

All available Accessories for this Fiber Optic Interface

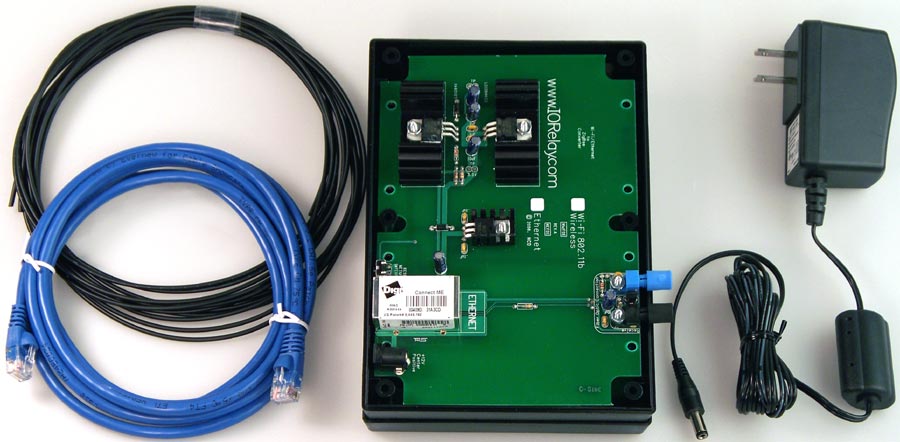

Includes 2 10-Feet strands of Fiber Optic Cable, 6 ft. Ethernet Cable, Power Cord, and Ethernet to Fiber Optic Converter.
