WiFi Relay with .Net Framework Communications Module
WiFi 8-Channel 5-Amp DPDT Relay + 8-Channel 8/10-Bit A/D with Web-Browser Interface
Product Code: NEADR85DPDTPROXR-NET_WIFI

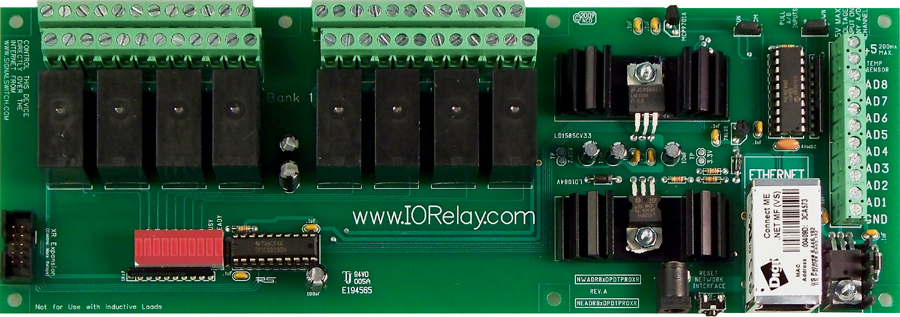

Once the Netgear WNCE2001 is configured to talk to your network simply connect it to the Ethernet Port of the NEADR85DPDTPROXR-NET_WIFI and power up the device. In no time you'll be talking to the board. Eight Analog to digital inputs are located on the left side of board. Add Relay Expansion Boards to the XR Expansion Port located on the right side of board.
Video Resources
(Select a thumbnail to view the video)Introduction to Ethernet
Learn about Ethernet Communications and how it is utilized by our Relay Controllers
Ethernet Setup
Watch as we show you how to Set Up the Hardware and explain your options for the Software necessary to Communicate to your Controller
Web-i Introduction
Get started with Web Control
Virtual Serial Port Setup
Learn how to use Digi Realport to Set Up a Virtual Com Port to communicate to your Networking Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
Related Products:
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC
www.relaycontrollers.com
Since October, 1995 .
DPDT Relay Controller
This device has DPDT relays installed. A single DPDT relay is made up of 2 SPDT switches. So each relay acts as two switches that are activated at the same time. This allows two independent signals to be switched at one time. In effect, there are two independent switches on a single DPDT relay. There are also two connectors for each relay allowing two separate connections to each relay that will be switched at the same time.
About ProXR
If you are new to our products, we would like to introduce to you is a term we call "ProXR". ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Wireless ZigBee, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Read More About Analog to Digital Conversion
ZETH-NET Web Relay Features
| Additional Features: | ZETH-NET |
| Supports Direct TCP/IP Communications | YES |
| Supports Direct Connection to SignalSwitch.com | YES |
| Supports Multiple Communication Methods (Above) Simultaneously |
YES |
| Supports Direct Internet Access Without a Server (requires static IP) |
YES |
| Open-Source User-Upgradeable (requires development software) | YES |
| Web-Browser Interface for ProXR Series Controllers | YES |
| Web-Browser Interface for Reactor Series Controllers | YES |
| Web-Browser Interface for Taralist Series Controllers | YES |
| Web-Browser Interface for Network Configuration | YES |
| Supports DHCP | YES |
| Supports Fixed IP Address | YES |
| Password Protection | YES |
WiFi 8-Channel 5-Amp DPDT Relay + 8-Channel 8/10-Bit A/D with Web-Browser Interface | |
|
Quantity in Basket:
None
Code: NEADR85DPDTPROXR-NET_WIFI Price: $379.00 Shipping Weight: 2.50 pounds | |
