Relay Control by NCD: Fiber Optic Relay Controller 16-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D

FOADSR165PROXR Fiber Optic Relay

Fiber Optic Relay Controller 16-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D

Now it's finally possible to use any Interface for controlling devices that generate large amounts of EMI. Two fiber optic cables are used for 2-way communications between the controller and the interface. All interface options convert data to our standardized Fiber Optic communication format.

Control this Device Over the Internet

Signal Switch Compatible

Fiber Optic Relay Controller 16-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D

$349.00/ea

Product Resources:

	NEW TO THE FIBER OPTICS? GET STARTED HERE Click the above link for an exclusive article on Fiber Optic communications
	Download Product Manual
	Download Example Software and Source Code for Visual Studio 2005/2008

Software Development Tools:

Download the
NCD Component Library

The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wired Communications

Learn the basics of wired communications and find the right wired controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

This movie will explain the different expansion options that can be used with our controllers.

Features

Expandable to control up to 256 Relays using the XR Expansion Port
16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
Add Relays to this Controller is your Needs Ever Grow
Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
CPU Status LEDs Show Command Processing Activity
Fiber Optic Interface Compatible with Ethernet, Wi-Fi, ZigBee, RS-232, USB, and Bluetooth to Fiber Optic Converters
8-Channels of 8-Bit or 10-Bit A/D

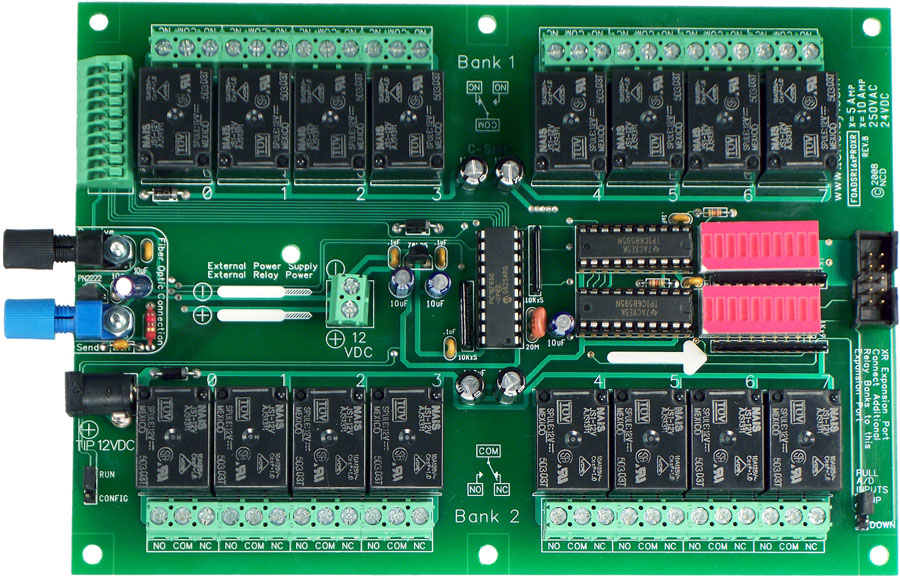

Fiber Optic Relay

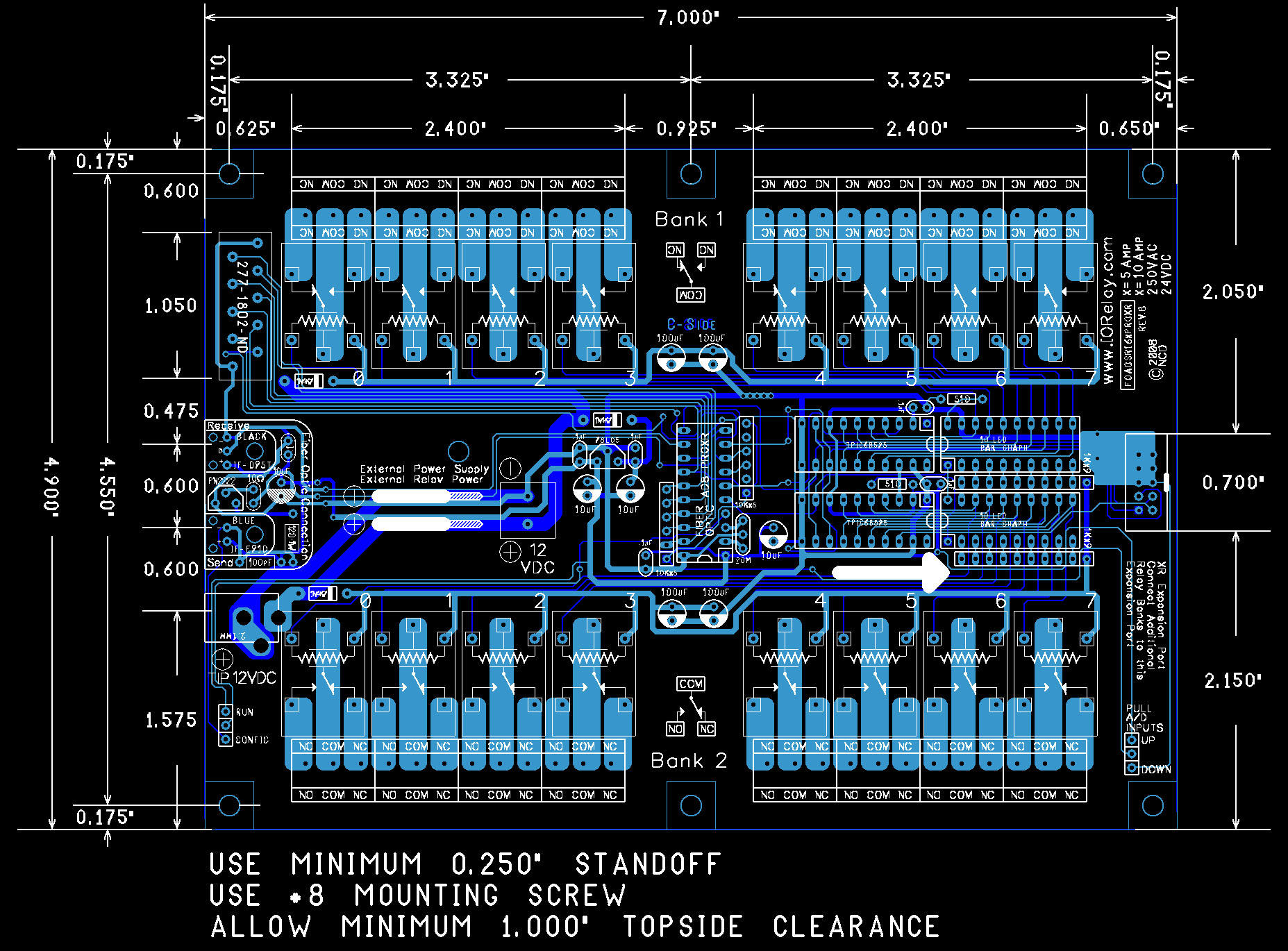

Mechanical Drawing

This Product:

FOADSR165PROXR

Ratings	AC	DC
Voltage	240	24
Amperage	5	5

	Fiber Optic Relay Controller 16-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D
Stock#: FOADSR165PROXR
1-9	$349.00
